LDO Orbiter Extruder V2.5 (Orbiter V2.5 and V2.0 to V2.5 Upgrade Kit)

High precision direct drive extruder designed by Dr. Lorincz Rober in cooperation with LDO Motors. The LDO Orbiter V2.5 uses a new spider shaft with a knurled surface which results in much greater eccentricity (20-30 µm vs 50-140 µm) resulting in consistently better performance.

In addition, the new wide cut gears bring a new innovative design with a flat bottom cut, eliminates extrusion rate changes based on your filament position by providing a uniform drive gear diameter in all cases. Lastly, these gears now use a RNC nano coated gears with increased hardness (HRC60+) over the traditional gears provided by the Orbiter V2.0.

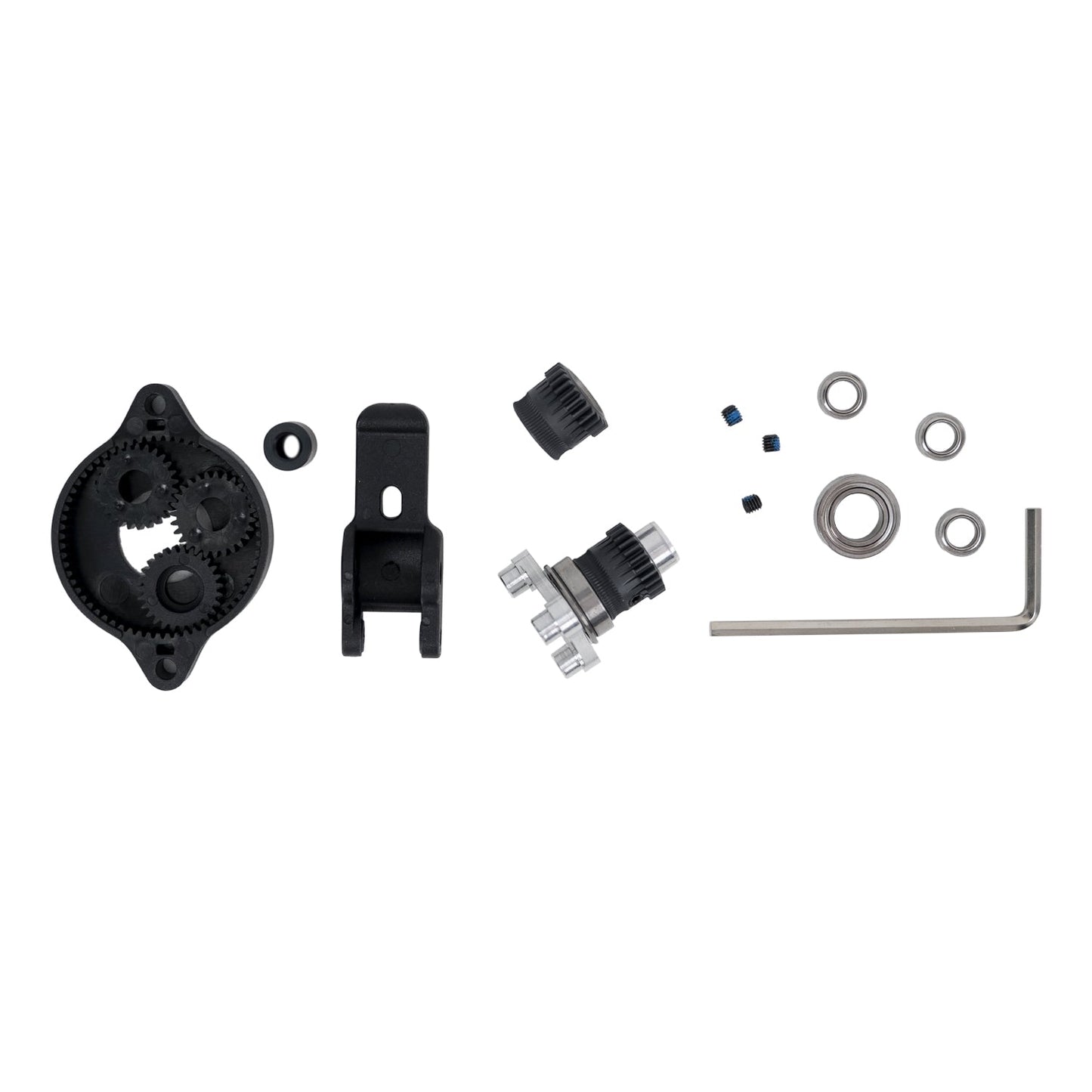

Complete kit includes:

• Orbiter V2.5
• LDO 36STH20-1004AHG(XH) Pancake Motor (when selected “with motor” variant, coming soon)
• Adapter Cable
• Mounting Hardware
• Hex Wrench
• Basic Configuration Instructions

Features:

• RNC wide cut nano-coated dual filament drive gears
• 11mm drive gears
• Precision knurled spider shaft
• Weighs ~135 grams
• Smaller dimensions compared to Orbiter V1.5 (11.6% shorter)
• High temperature resistant injected housings - GPA12
• Machined PEEK secondary drive gear sleeve
• Stainless steel filament exit guide for better TPU printing experience and wear resistance for abrasive filaments

Upgrade kit includes all new hardware to convert an Orbiter V2.0 to a V2.5
