Spindle and VFD Inverters for CNC Milling Machines (Milo by Millennium Machines) (110v and 220v)

Spindle and VFD Inverters for CNC Milling Machines (Milo by Millennium Machines) (110v and 220v)

SKU: LDO1986

Price: $119.99 USD
List Price:
Price: $119.99 USD
Style

Great reasons to buy from us:

  • Image of trustbadges
  • Image of trustbadges
  • Image of trustbadges

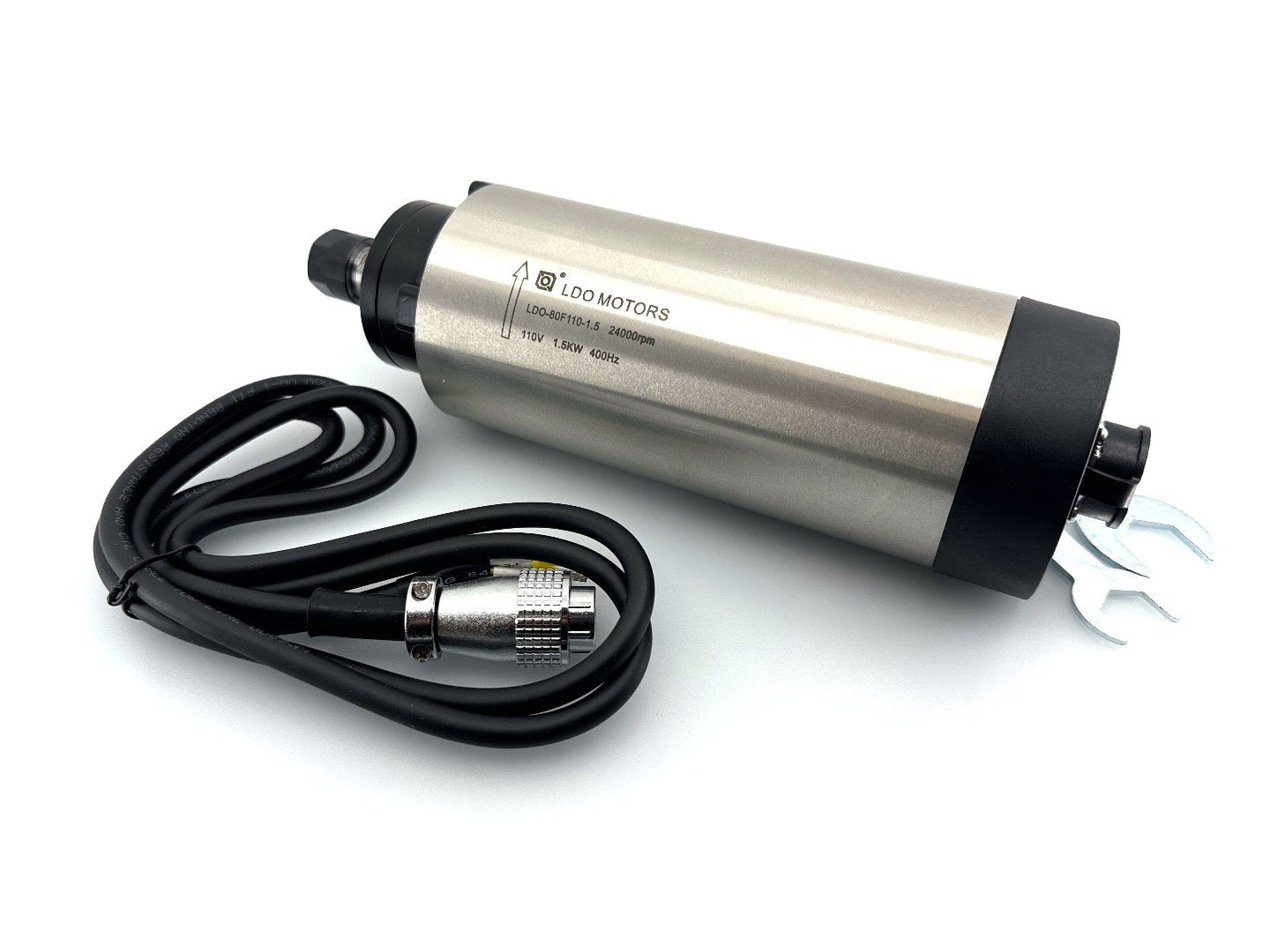

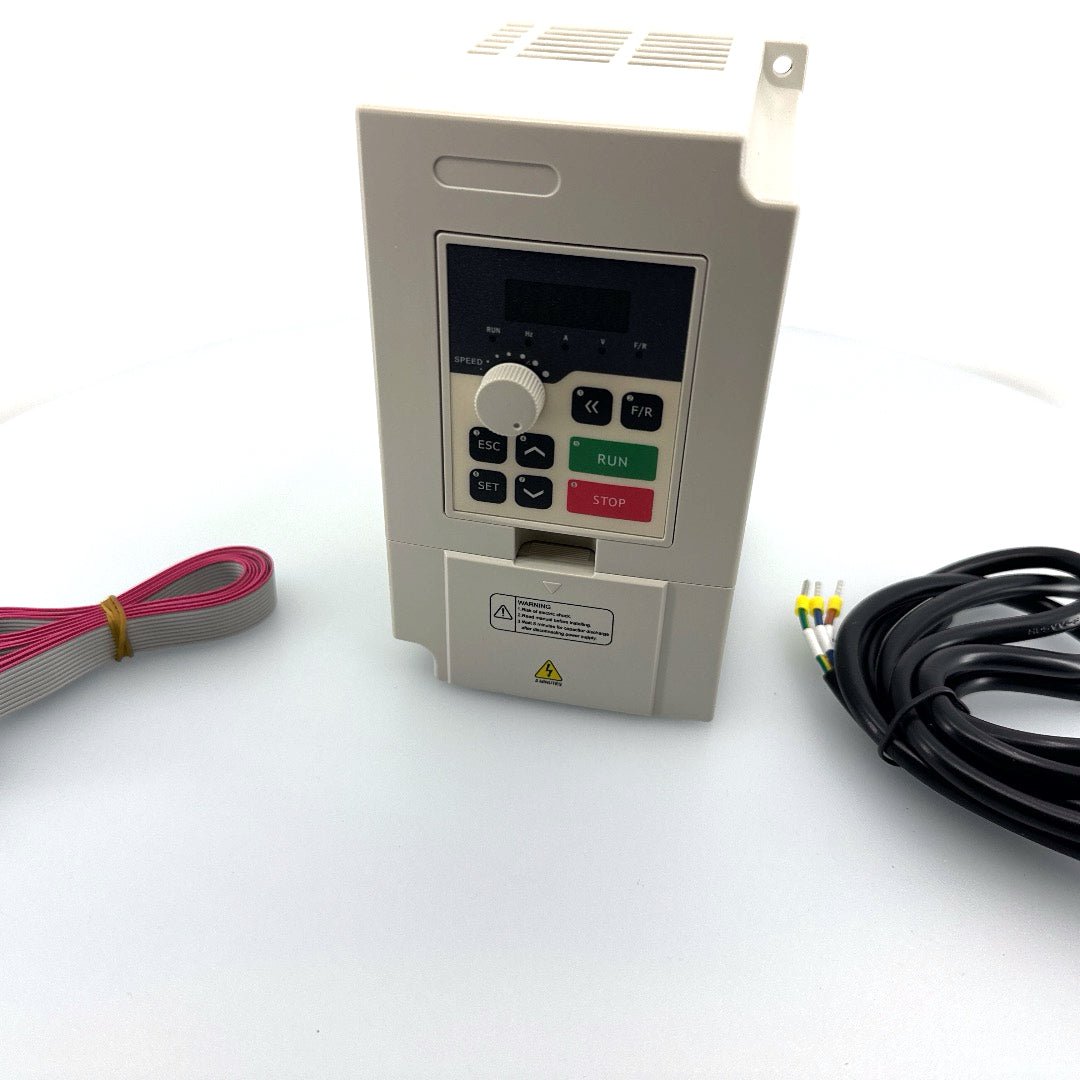

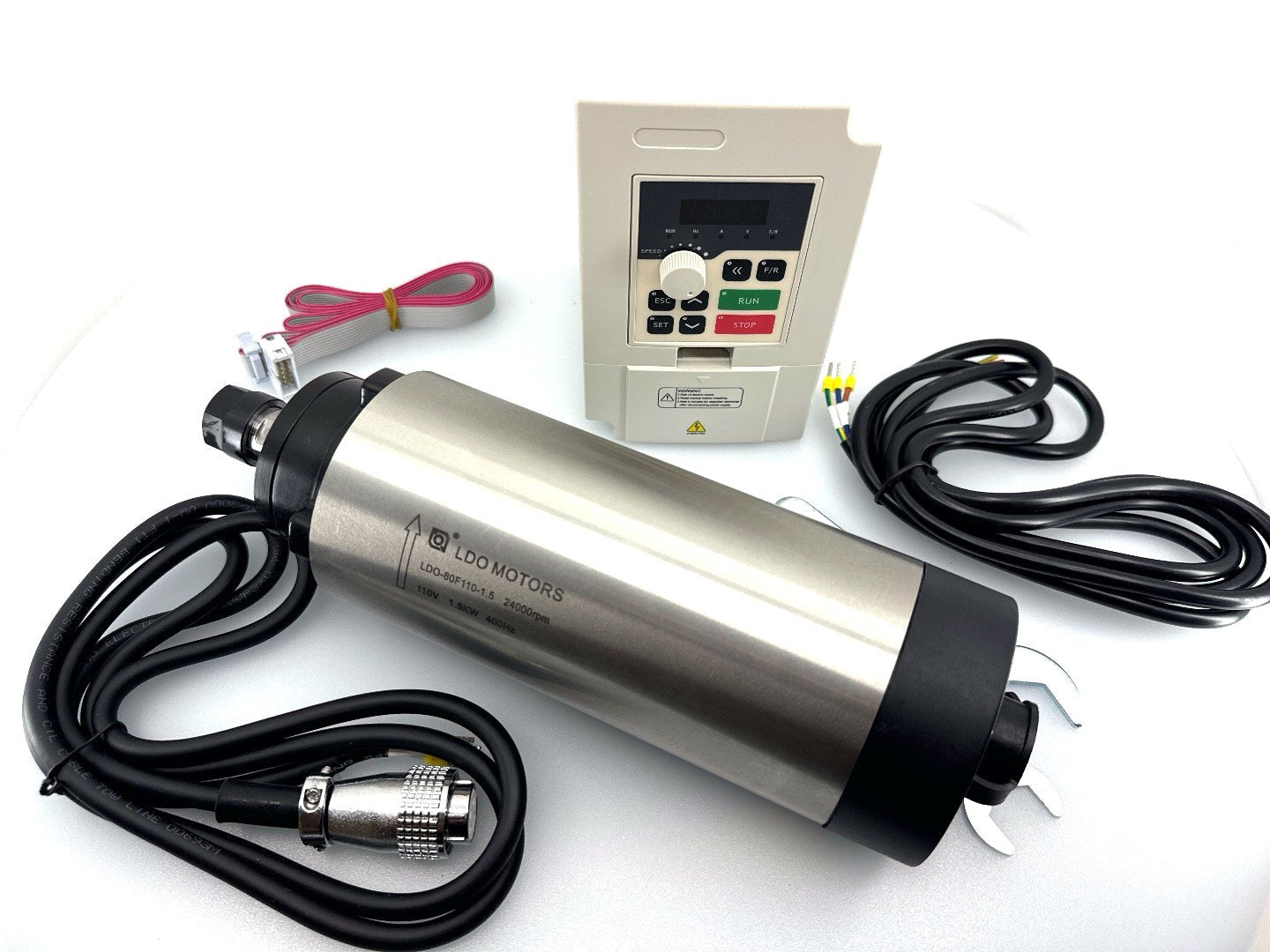

This is a listing for a Spindle and/or Inverter commonly used for CNC machines. Both of these are provided by LDO Motors for West3D (used for the Milo v1.5 we have here.)

The combination of a 110v spindle and VFD is an air cooled 1.5Kw option able to be run on most American standard wall outlets. (technical specifications being uploaded soon.)

220v spindle technical specifications:

Model LDO-GDZ-80F-1.5
Size 80x195mm
Voltage 220V
Current 8A
Frequency 400Hz
Performance 1.5kW
Rotation speed 24 000 rpm
Max. Torque 0.59Nm
Collet ER16
Tension clamp 1-10mm
Incl. Air cooling
