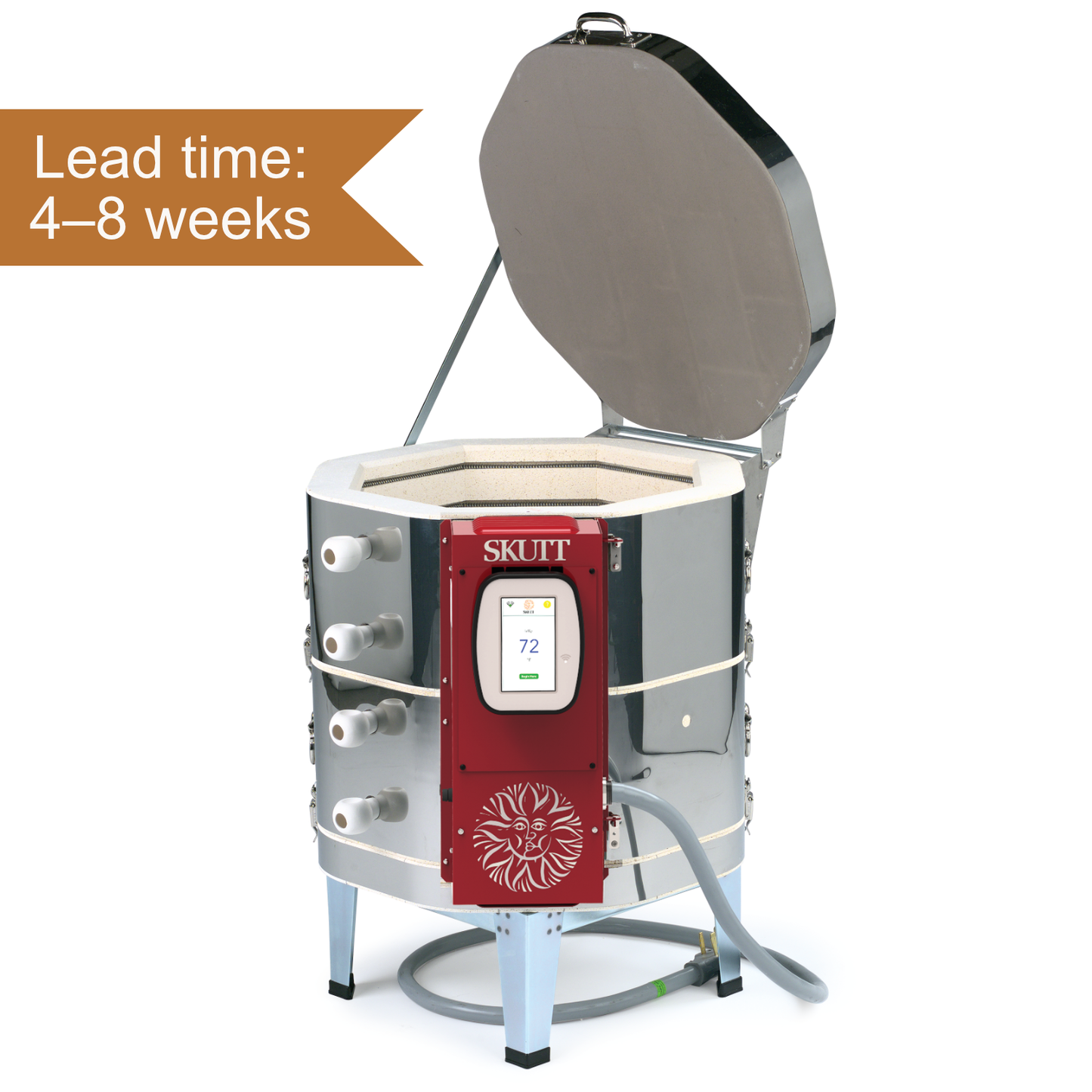

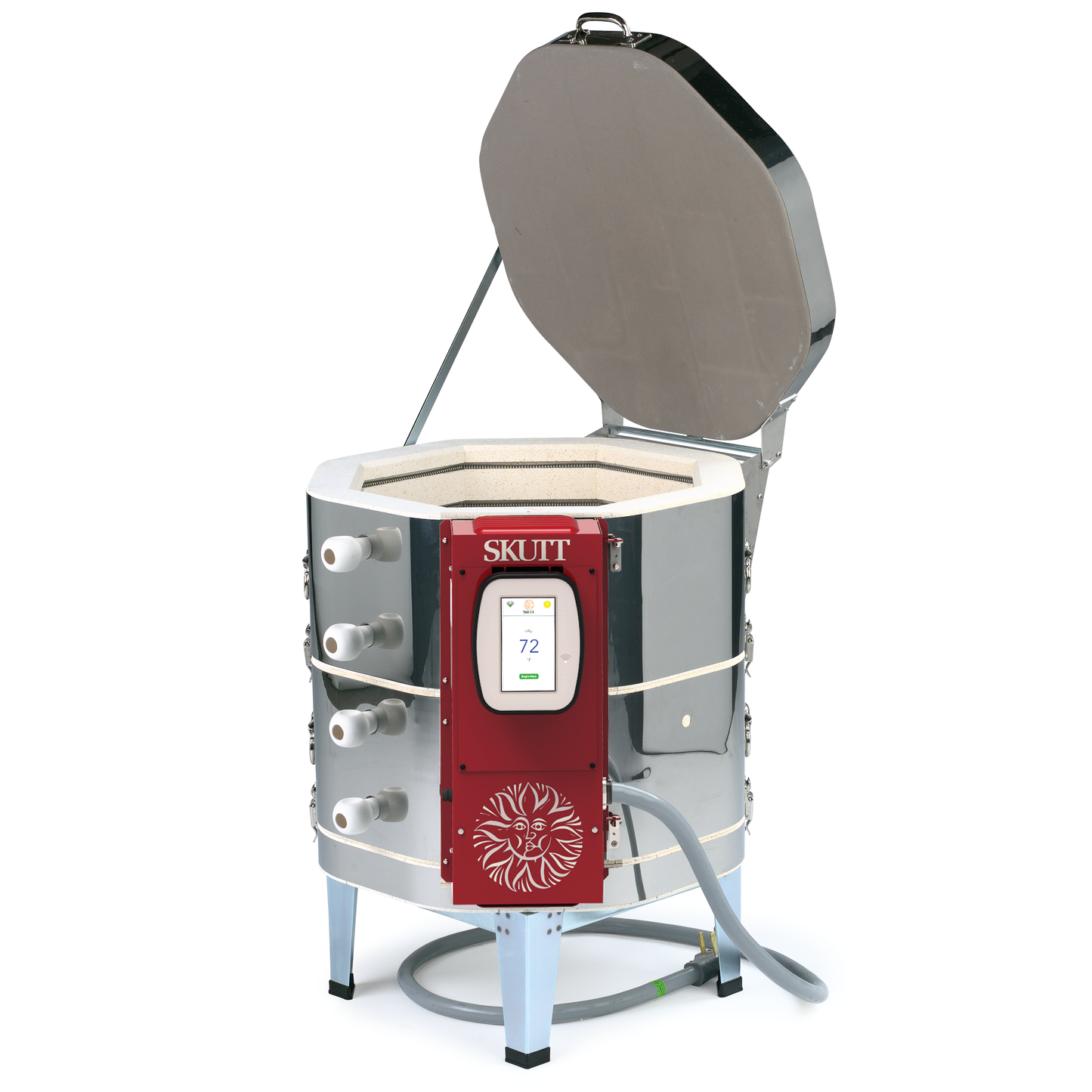

FireX Max Sintering Kiln

The FireX Max Sintering Kiln will sinter printed metal, glass and ceramic 3D prints with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C / 2350°F.

Current lead time: 4-8 weeks

How it works:
3D Print, Pack, Sinter, Metal!
"Pack" the printed part in Sintering Refractory Ballast, cover with Sintering Carbon, and load the part in the Kiln. Select the parameters for sintering, click start and your parts will soon turn to functional metal objects!

Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.

Specs:
240v, 26.7A, 6400w, Single Phase OR
208v, 26.7A, 5550w, Single Phase
Max. Temperature: 1288°C/2350°F
Controller: KilnMaster Touchscreen
Plug: 6-50P
UL Listed

Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), Amaco 46-D, and Porcelain

Sintering Area / Chamber Volume:
16.5" Diameter x 18" Depth /
419mm Diameter x 457mm Depth

Kiln Outer Dimensions:
22.5" Diameter x 32" Height /
572mm Diameter x 813mm Height

Shipping Weight: 145lbs

Only available in the USA
