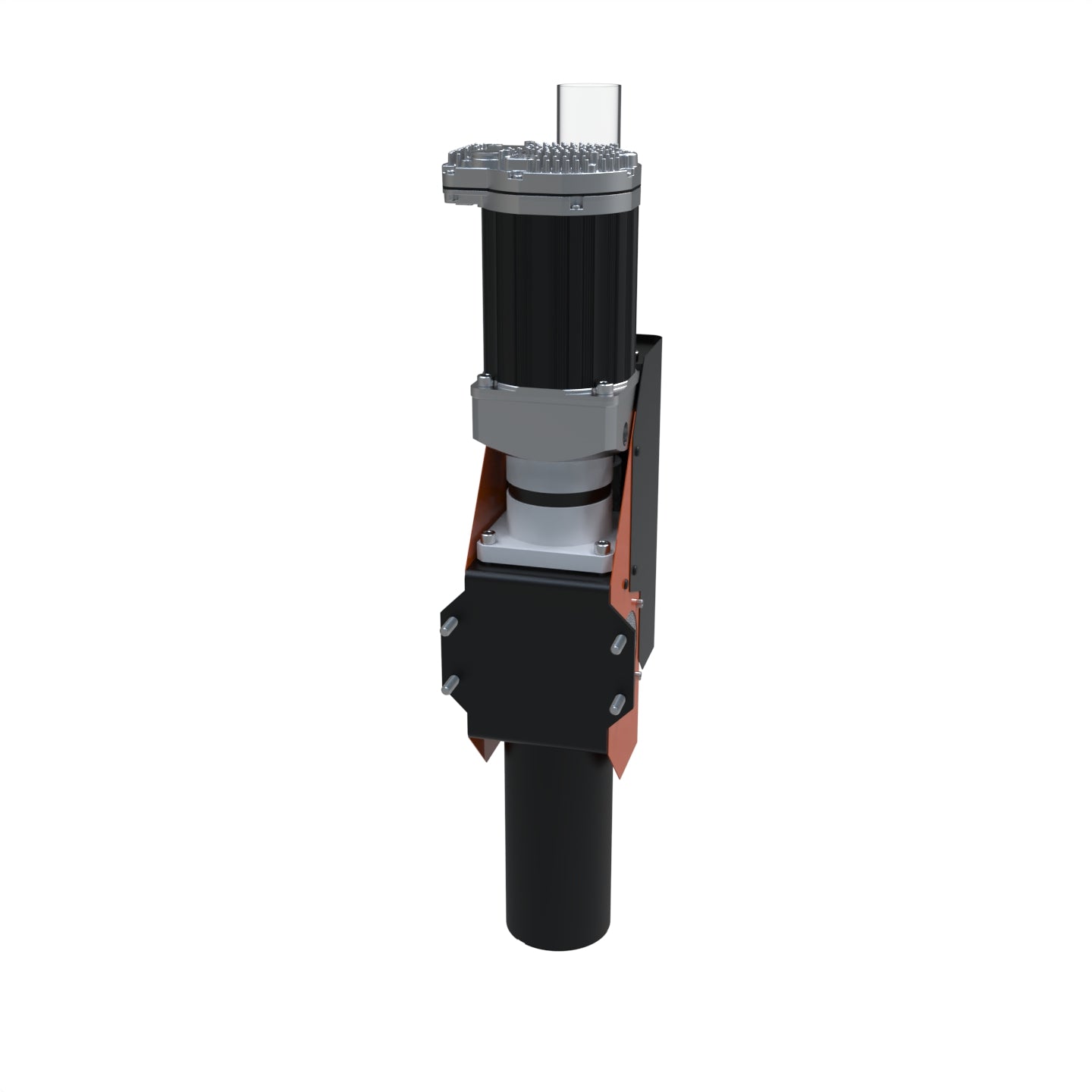

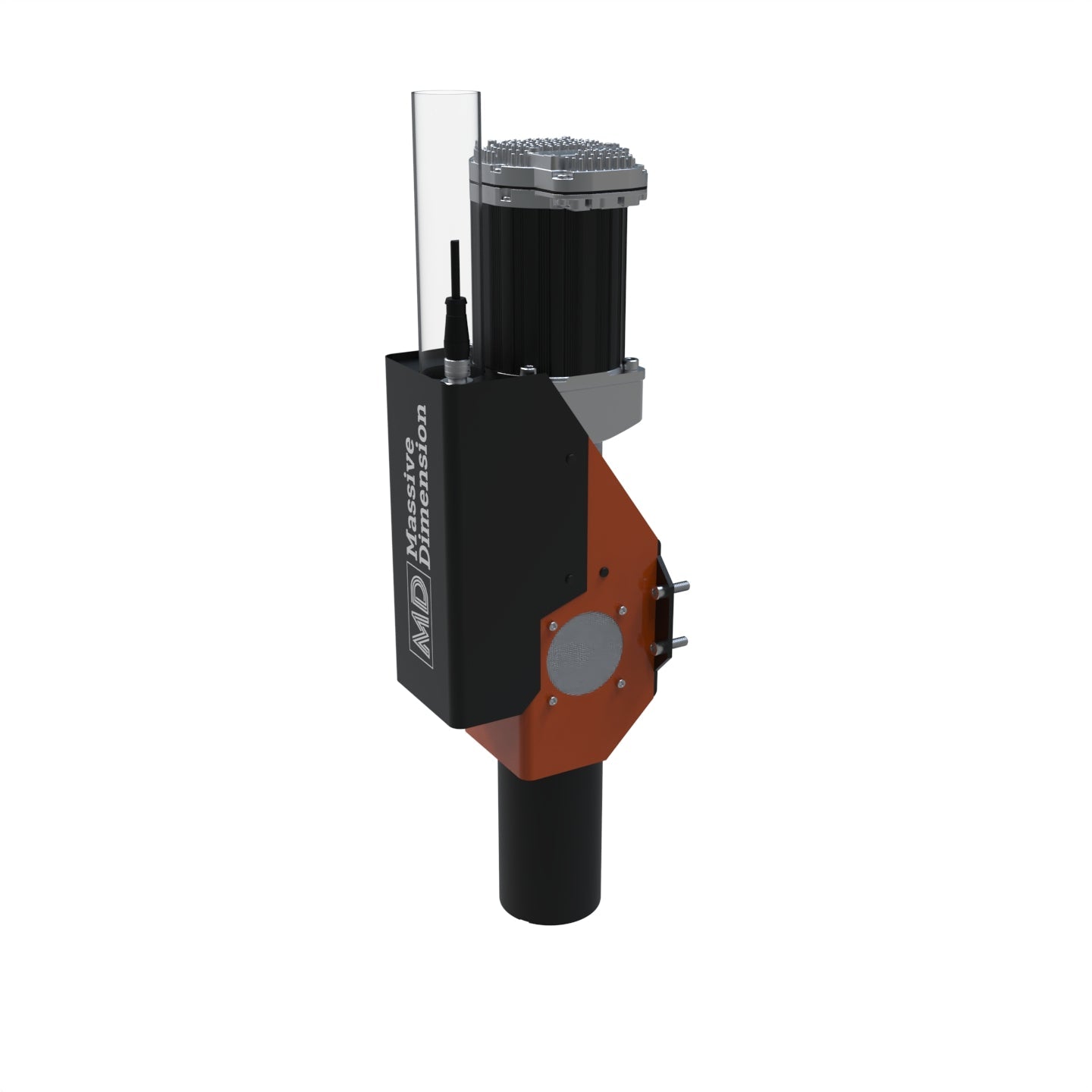

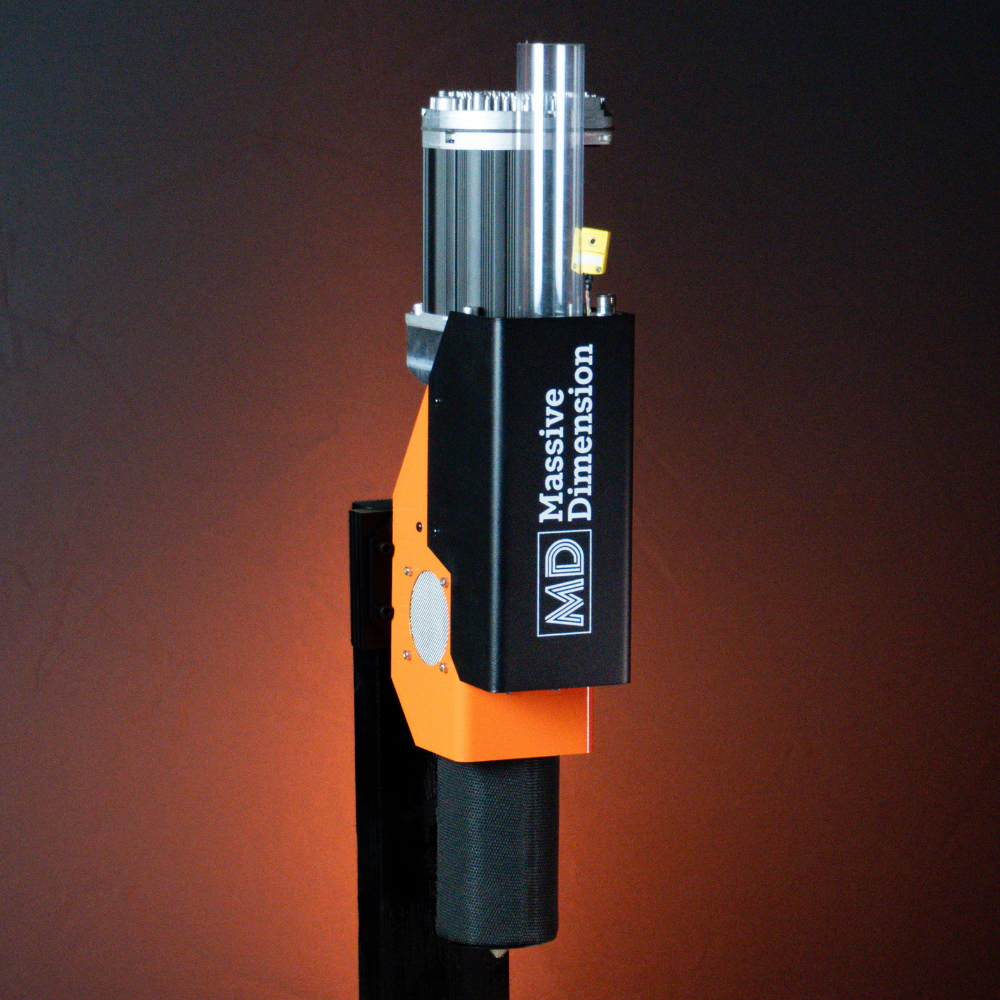

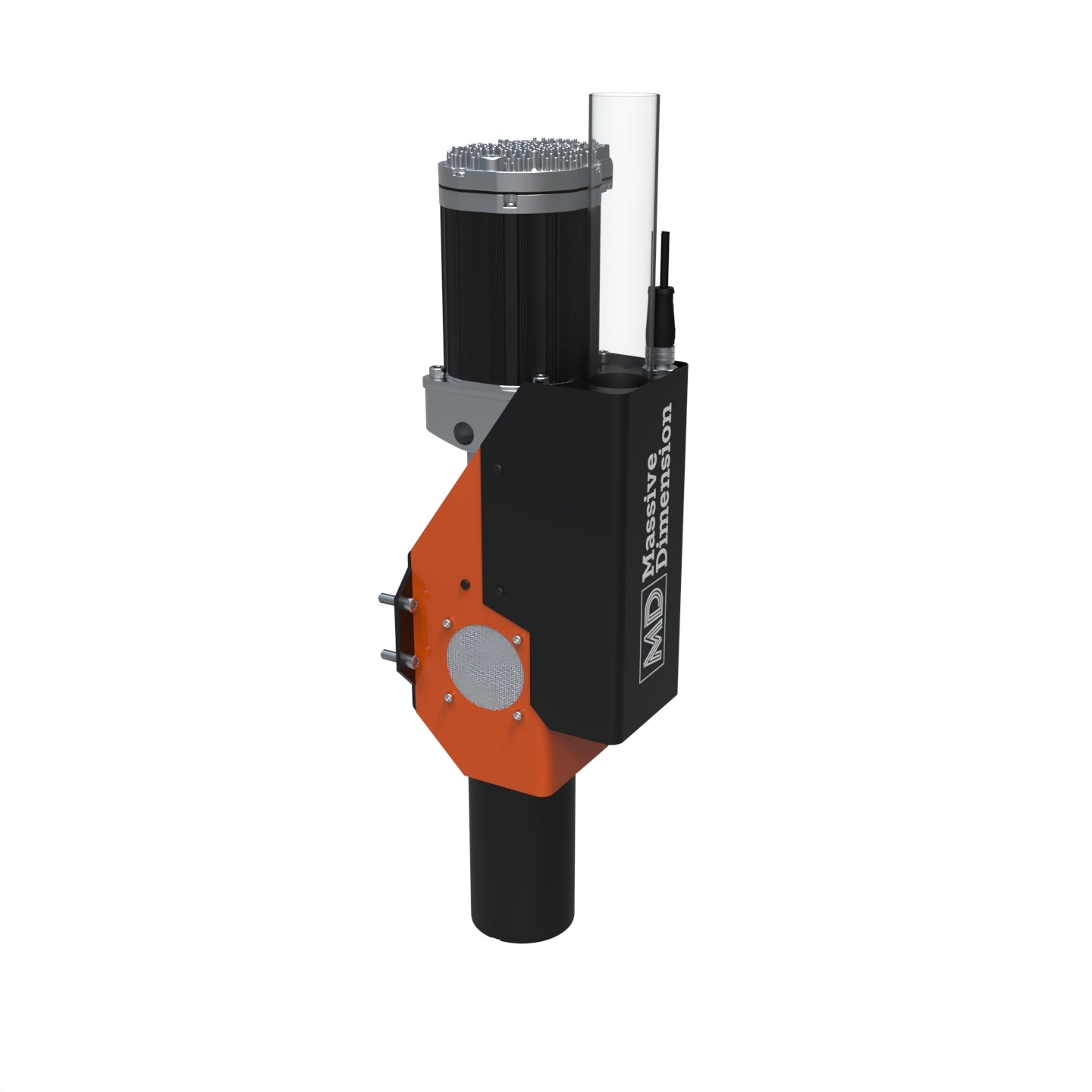

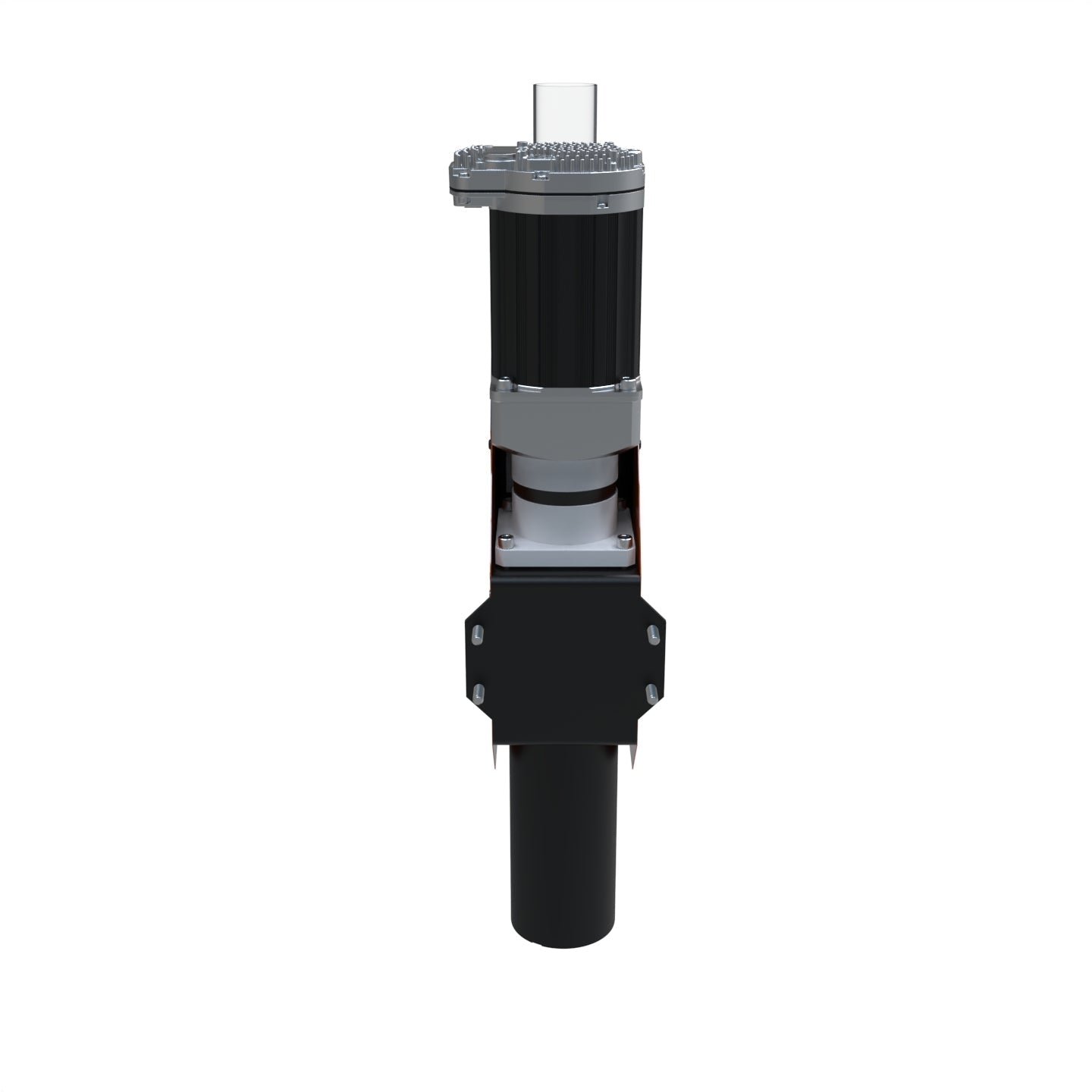

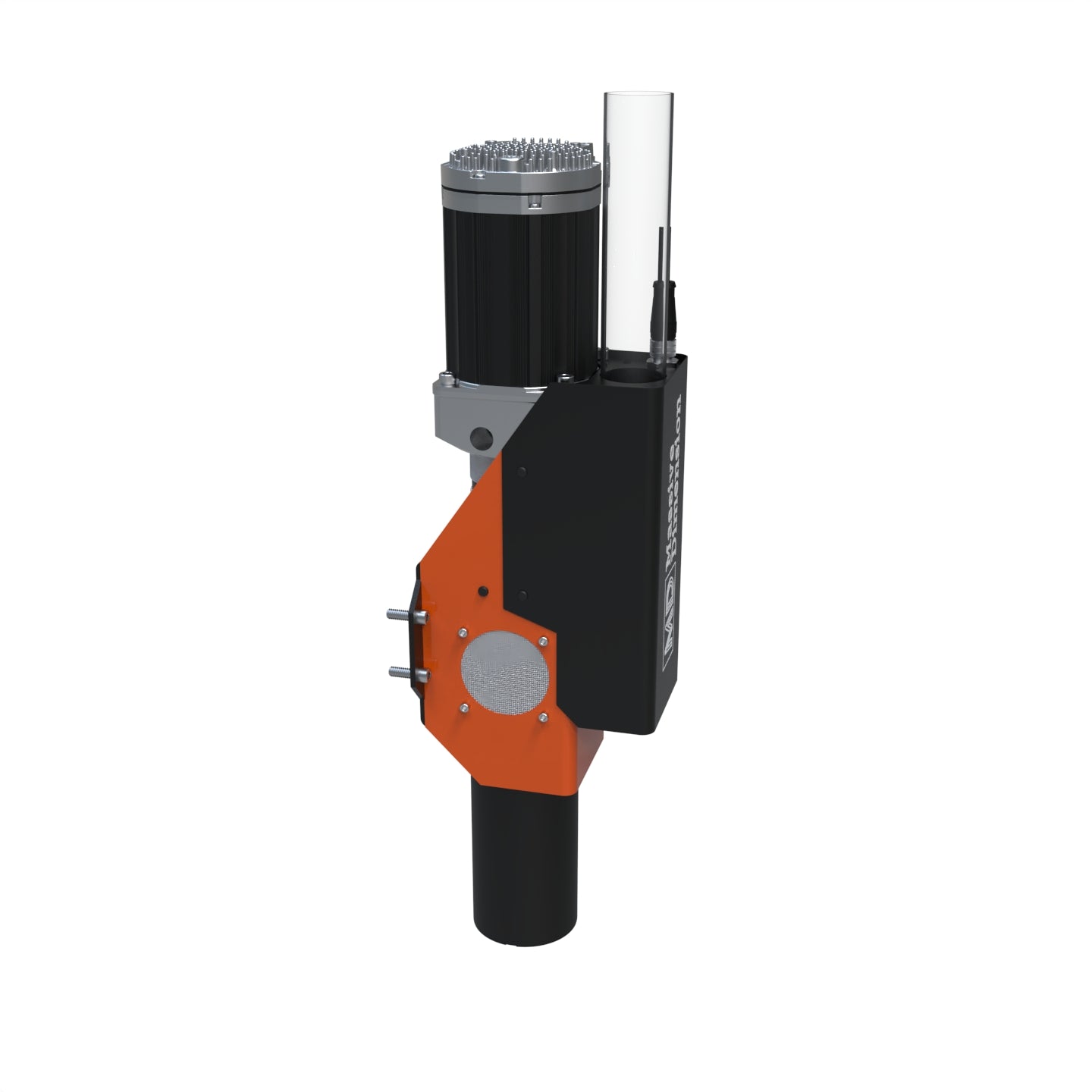

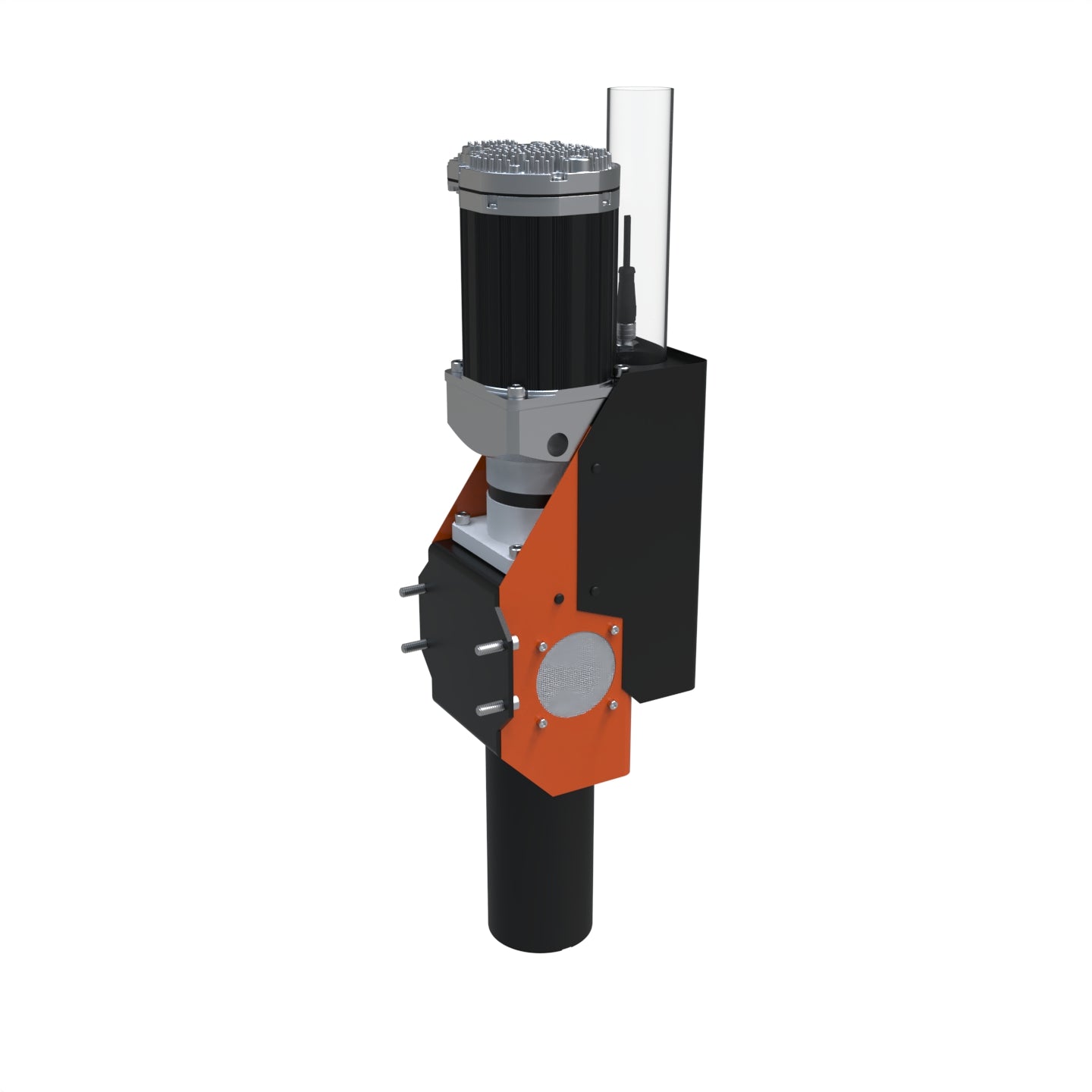

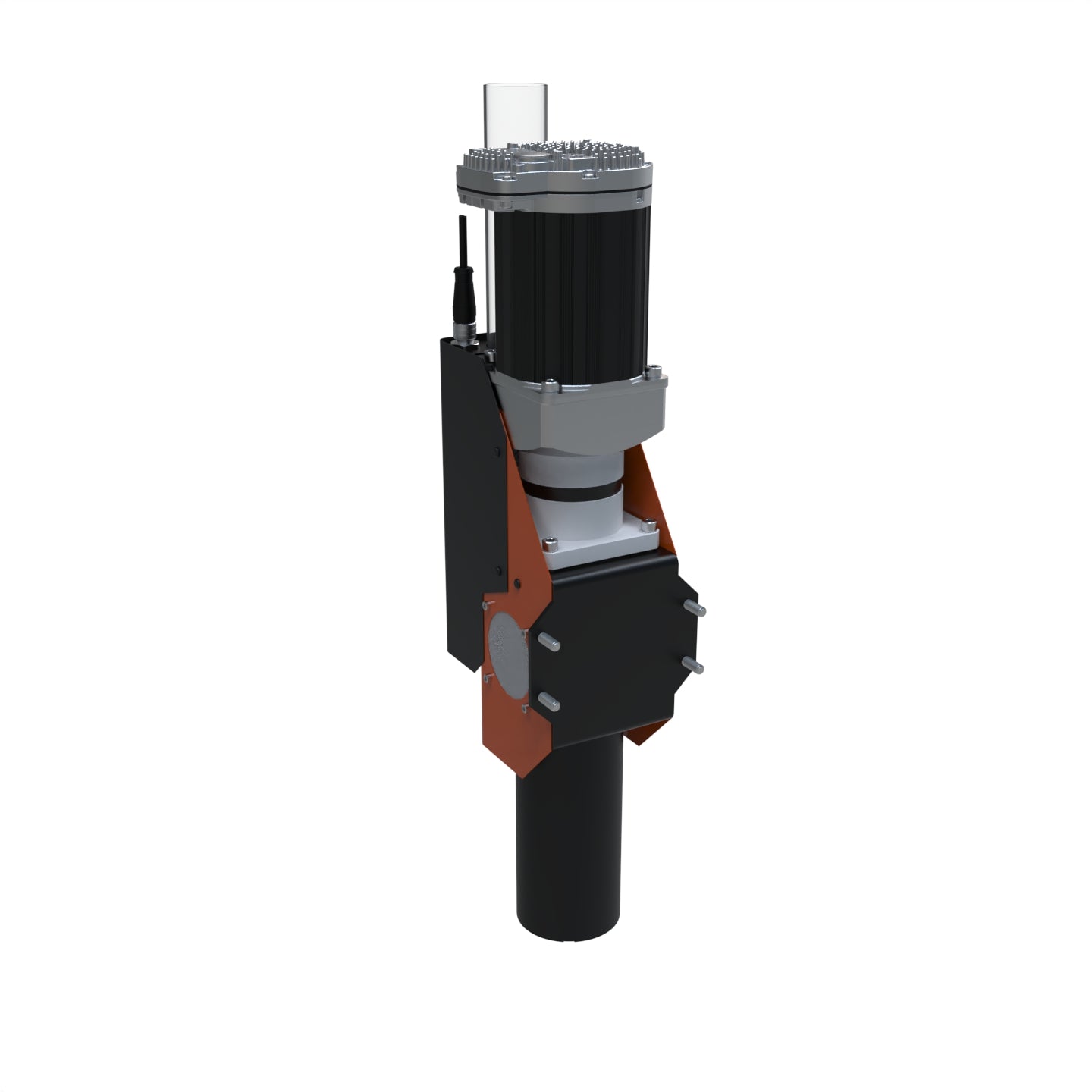

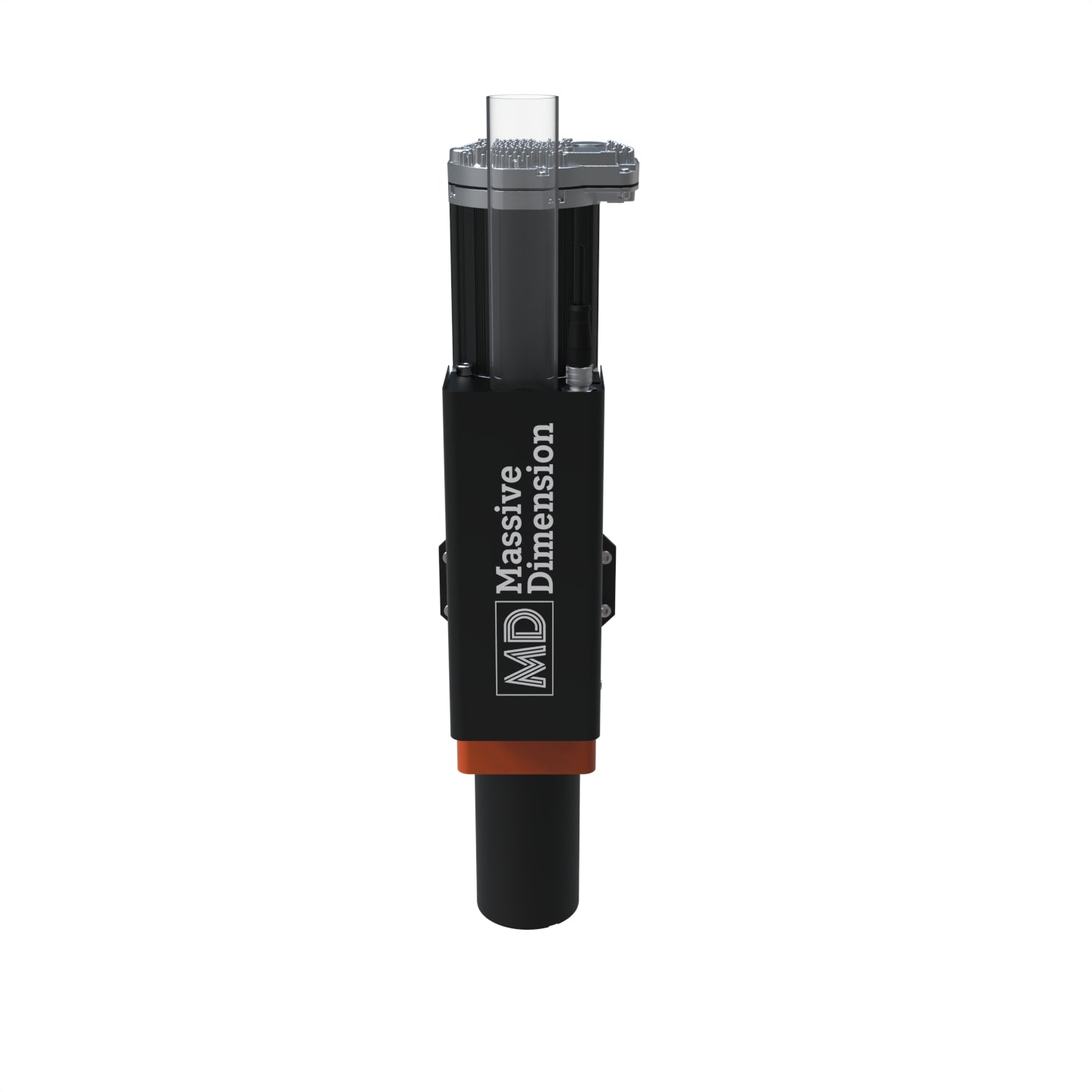

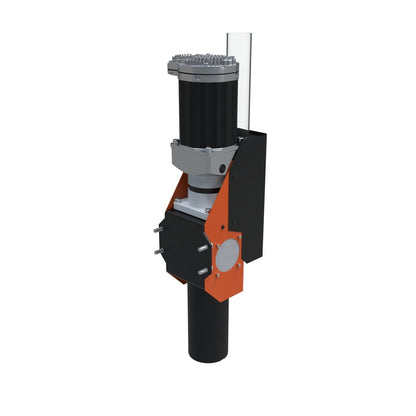

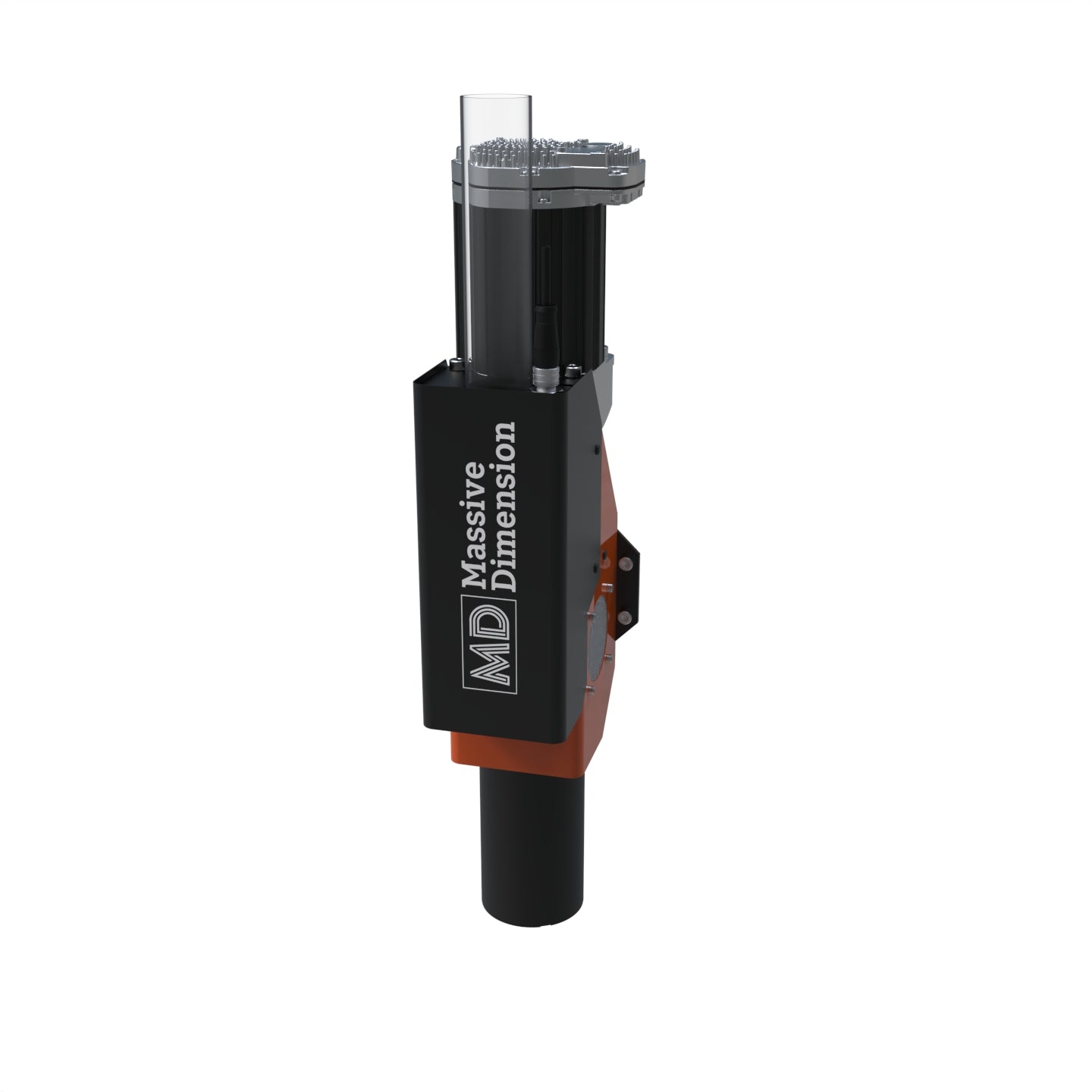

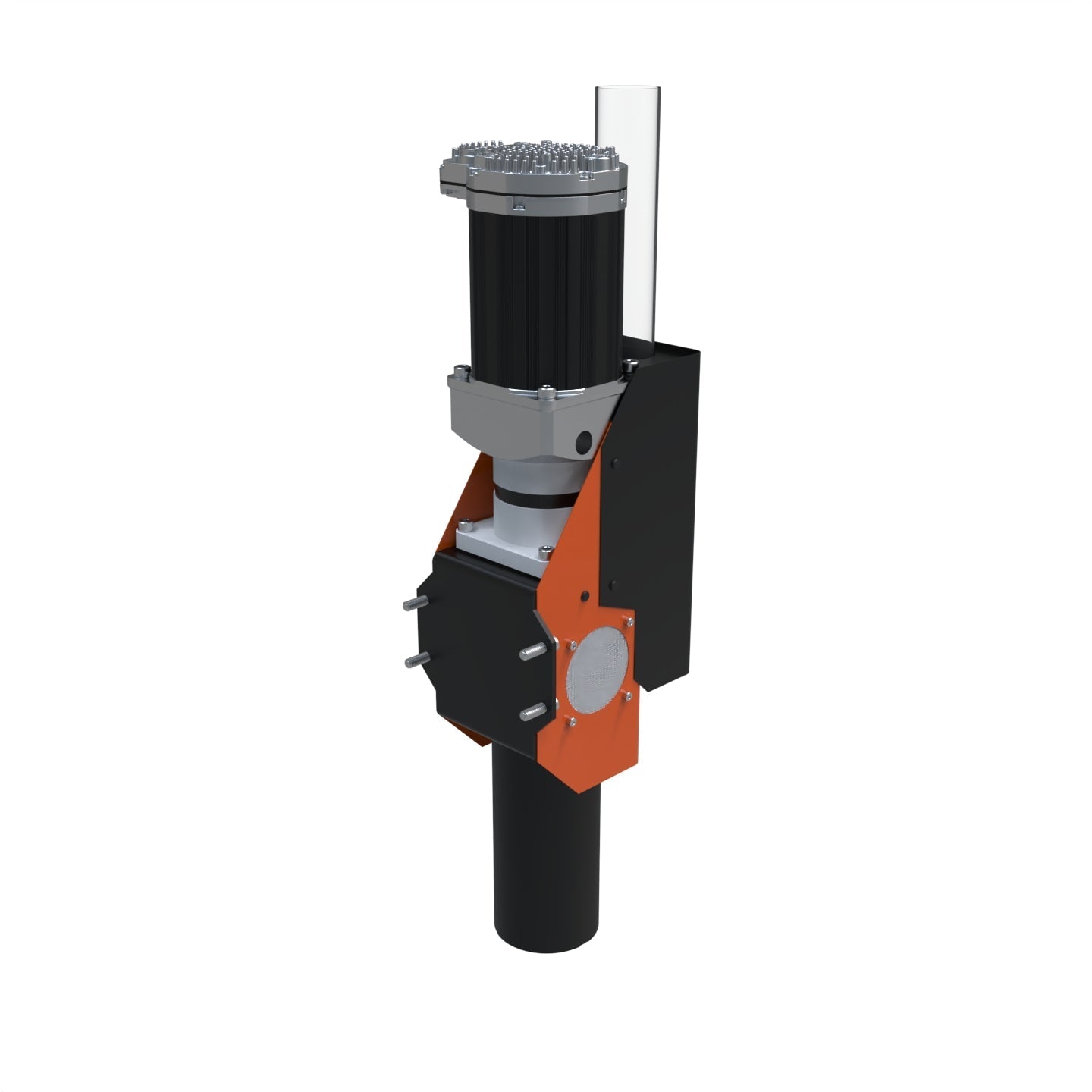

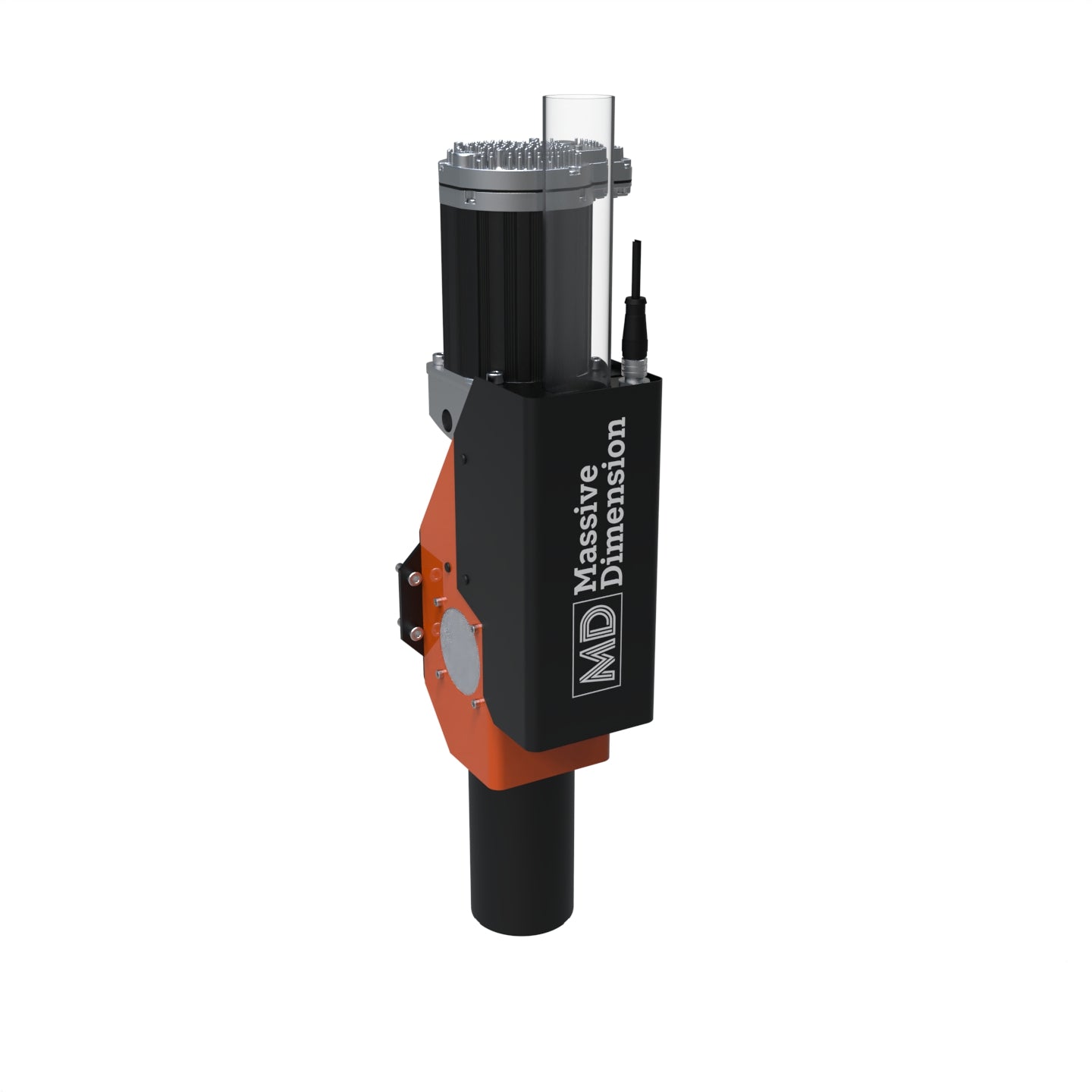

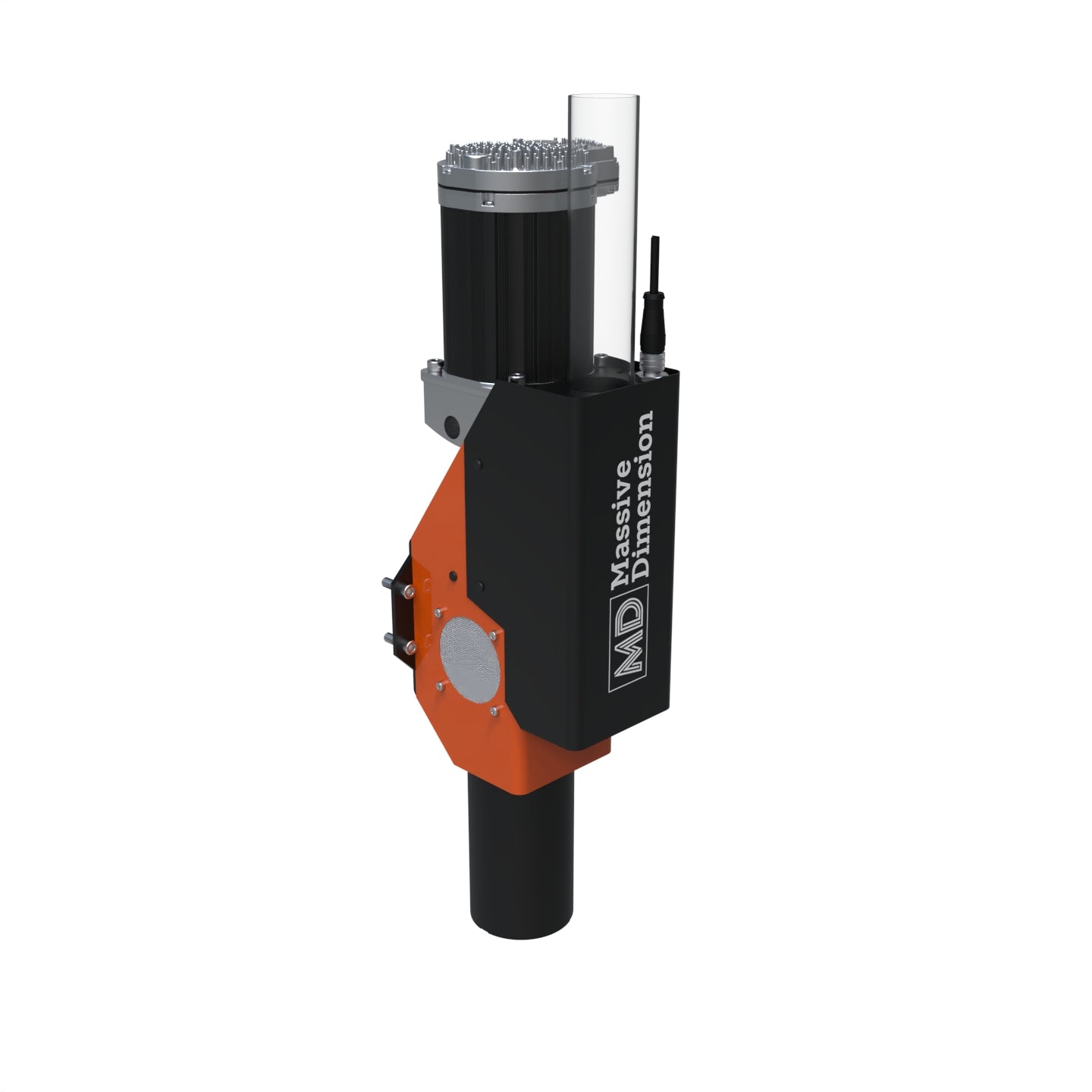

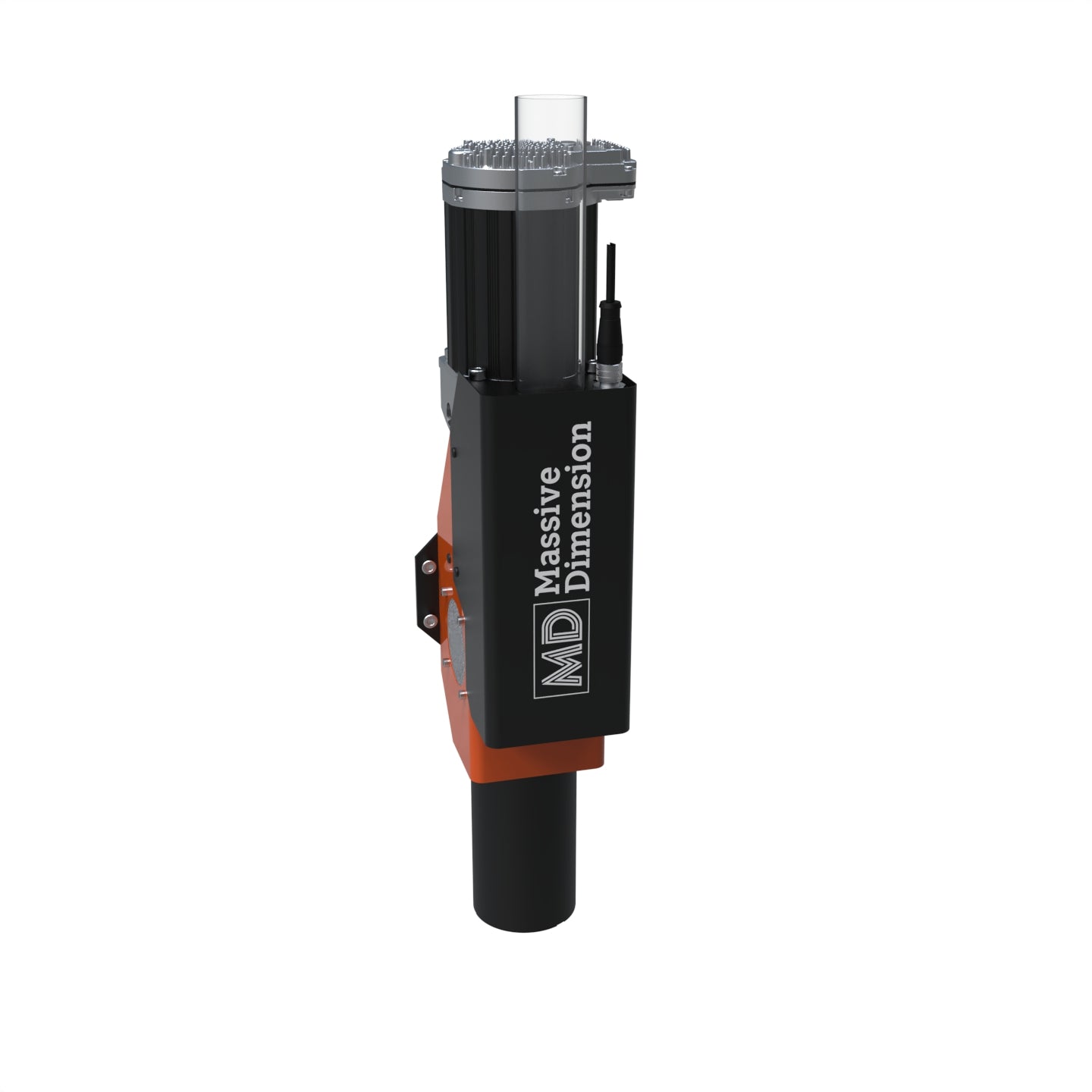

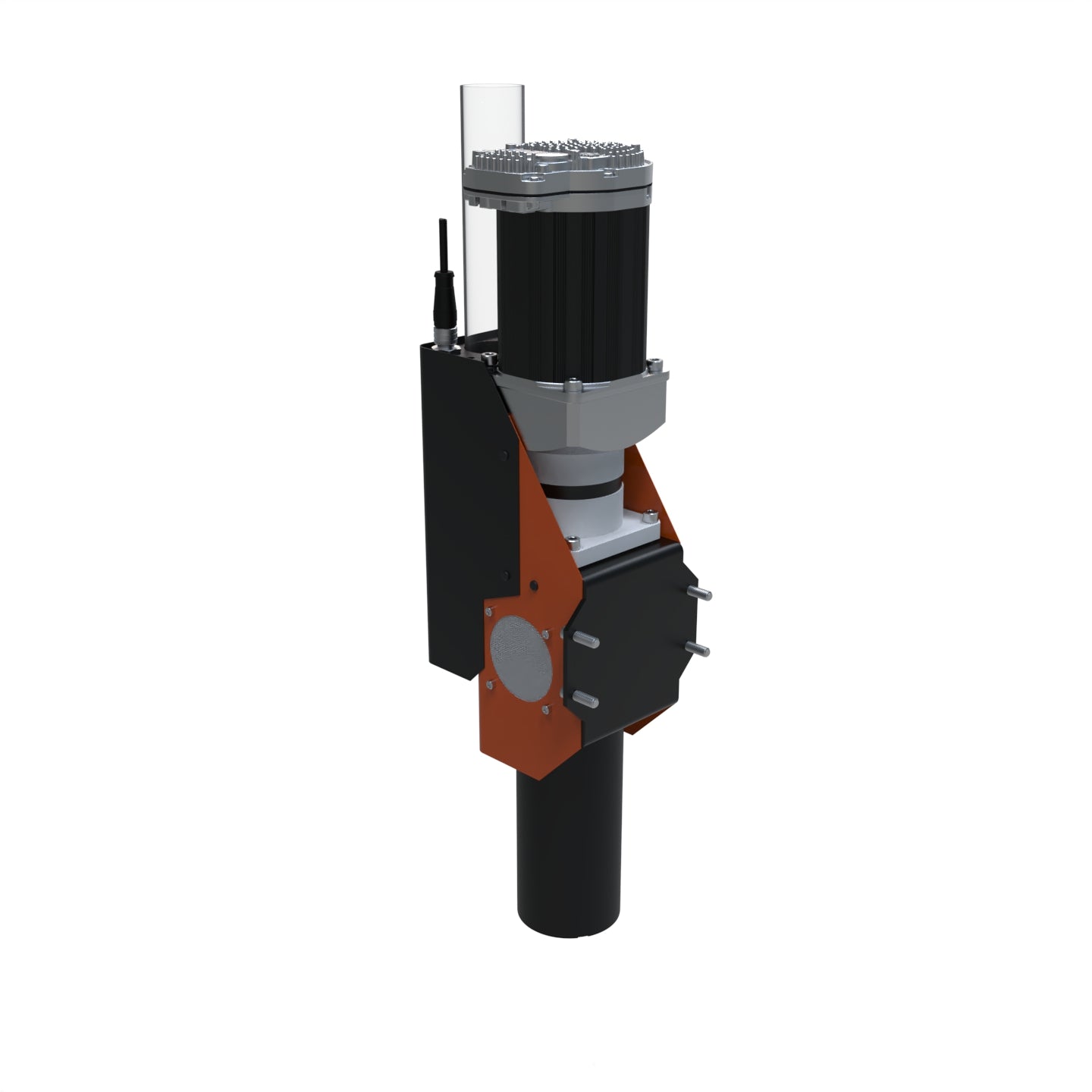

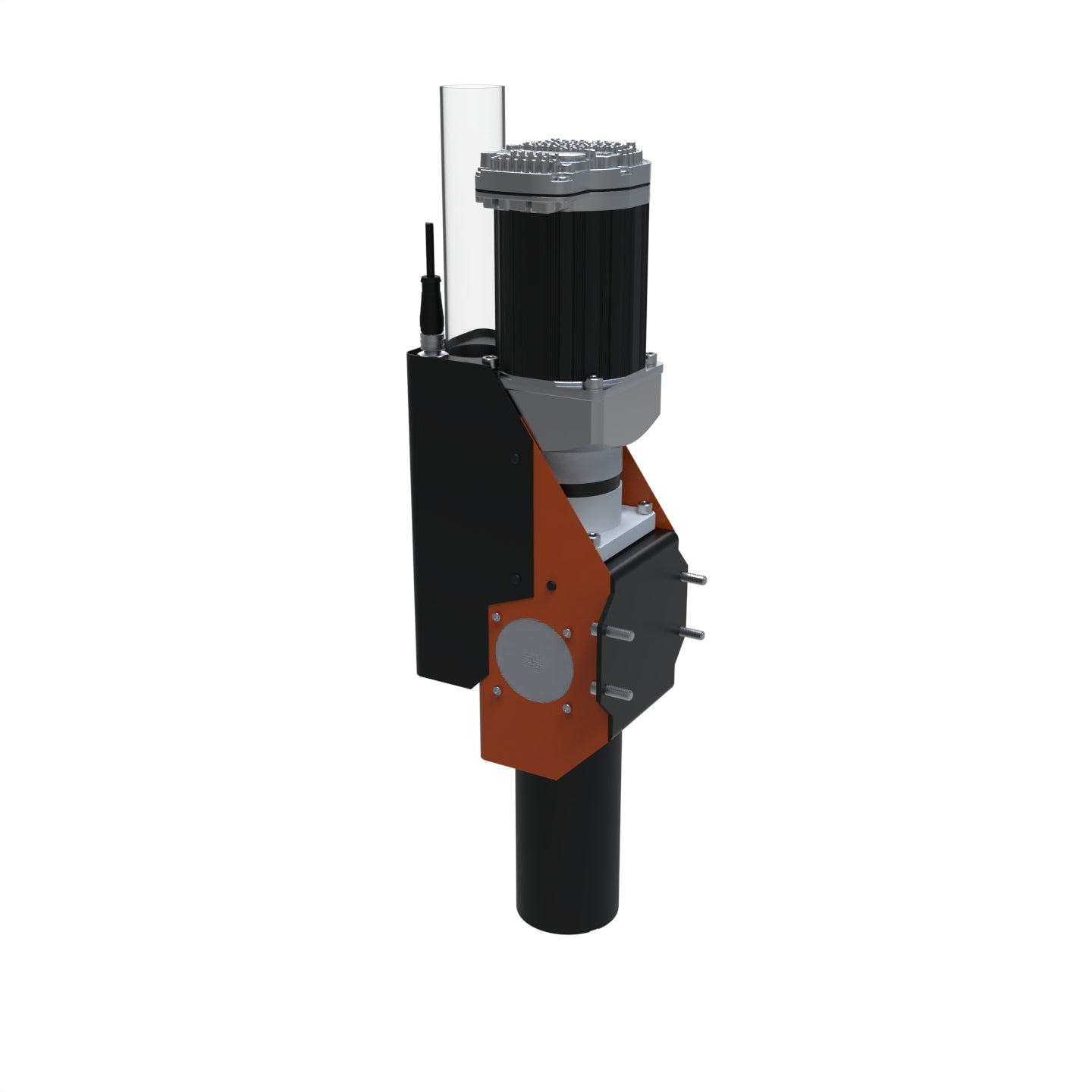

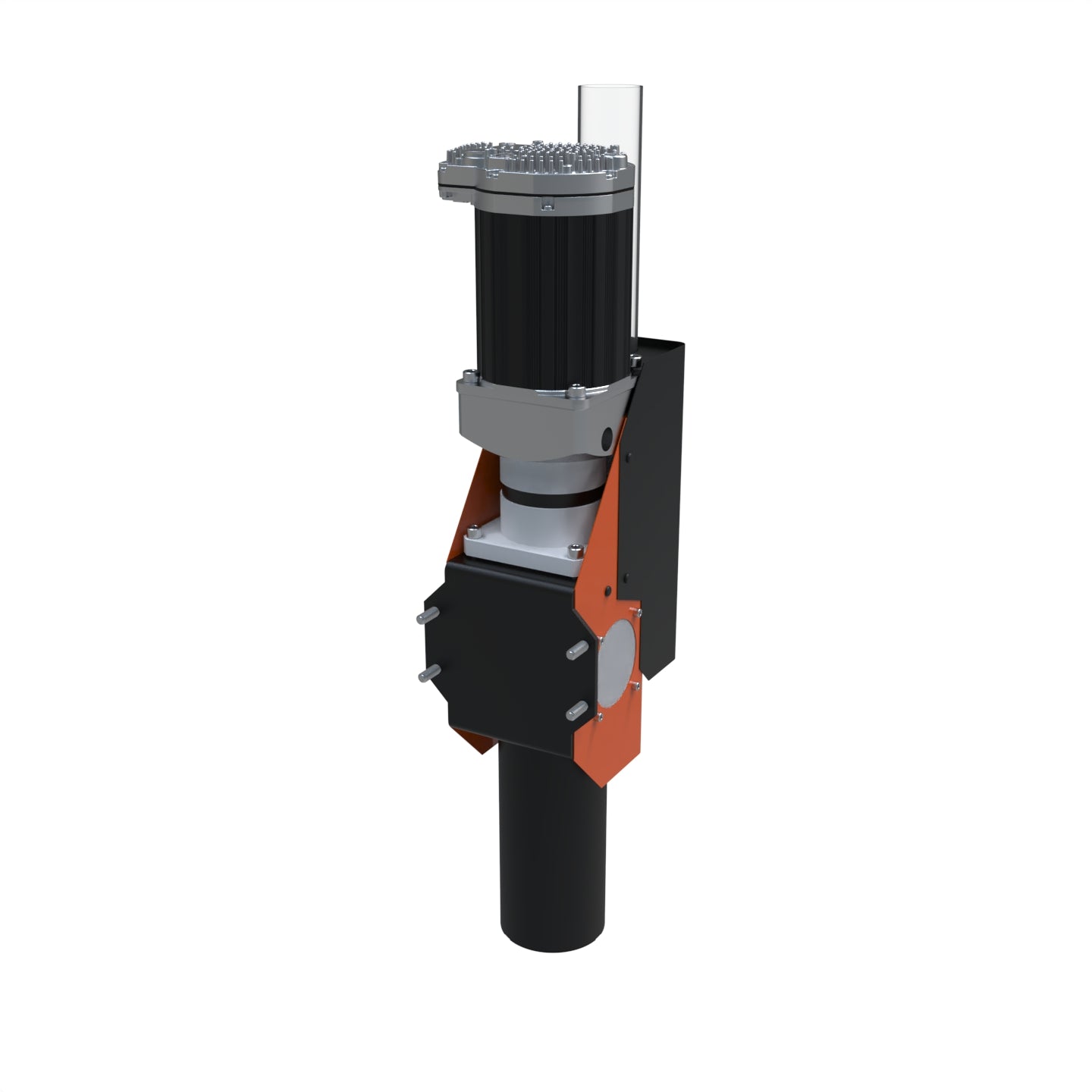

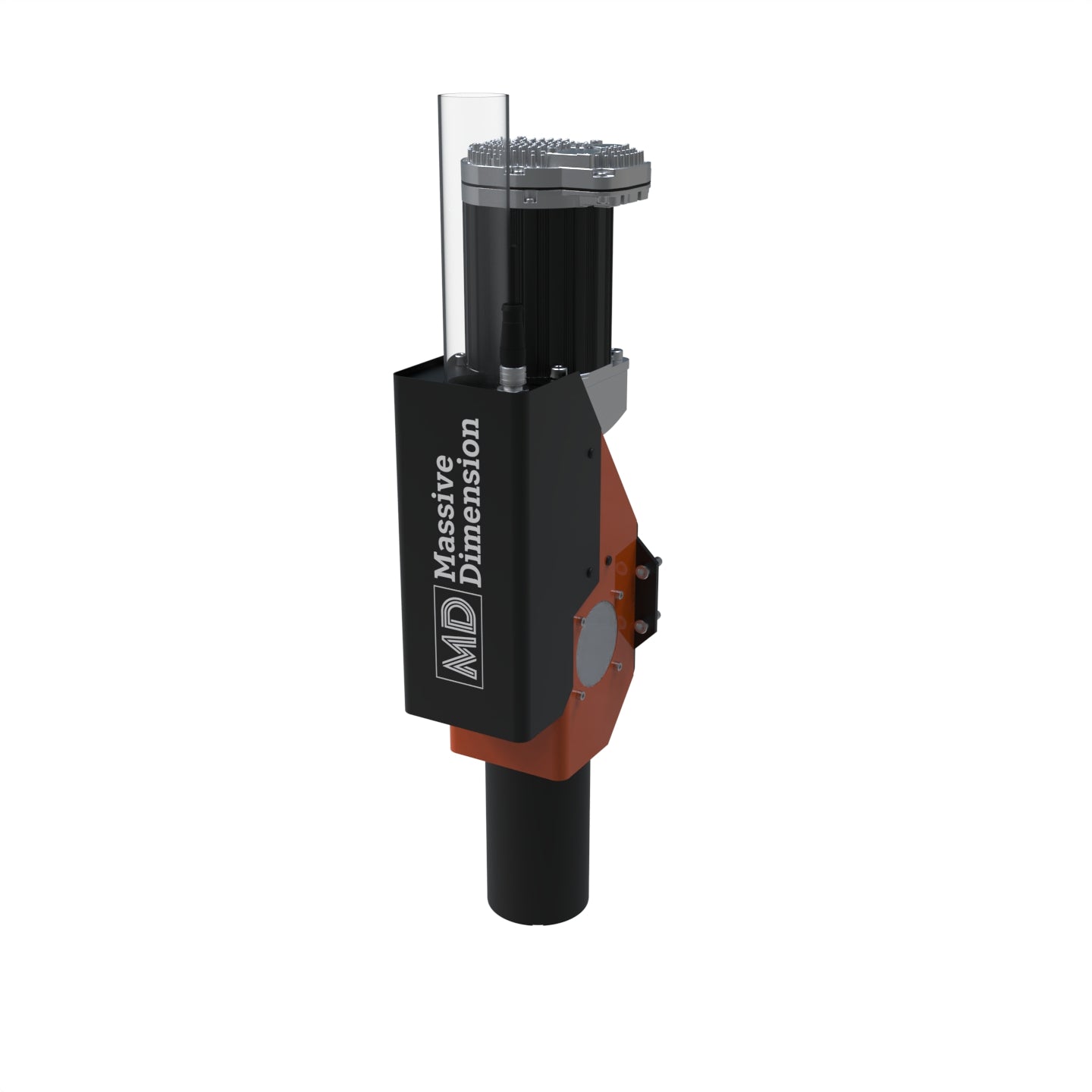

MDPH2 - Pellet Head Extruder

The MDPH2 is the original direct pellet-to-print large-format extruder by Massive Dimension, drawing on nearly a decade of experience engineering pellet-fed machines for filament production. After two years of production, though it has been superseded in size by our flagship MDPE10, the MDPH2 remains a stalwart, lightweight and economical option for those looking to break into the frontier of large-format additive manufacturing. Put to the test by consumers and industrial users alike, the design has been proven out as a reliable workhorse that can be carried by robust XYZ or SCARA systems as well as robotic arms. Click here to download the MDPH2 product overview.

Specifications

• Temperature Max: 450°C - 300 Watt Total Heating Power
• PID Temperature Controller
• High Performance, High-Pressure Screw.
• 1.3:1 Compression Ratio
• 9:1 L/D Ratio
• High Power Motor
• 2 pound per hour output - 4043D PLA Test
• Wide Range of Filled or Unfilled Materials - ABS, PLA, HIPS, TPU, TPE, PC, PS, and more
• Low Weight ~ 18lbs (8.39kg)
• Easy Mount
• 110VAC or 220VAC

What is in the box

• MDPH2 Pellet Head
• 2 Nozzles
• 10ft Power and Control Wire
• Motor Power and Control Wire
• Motor Driver
• Heater Relay
• IPC-5 Power Supply

What you have to setup

• Mounting MDPH2 Pellet Head to CNC
• Mount Motor Driver
• Mount Heater Relay
• Wire System
• Hopper Feed / Pellet Loading
• 24V DC Power Supply

Other Resources

• Overview Drawing
• CAD Model
• Power Supply Manual
• Wire Diagram
• Manual and Setup Guide
• Motor Configuration File
