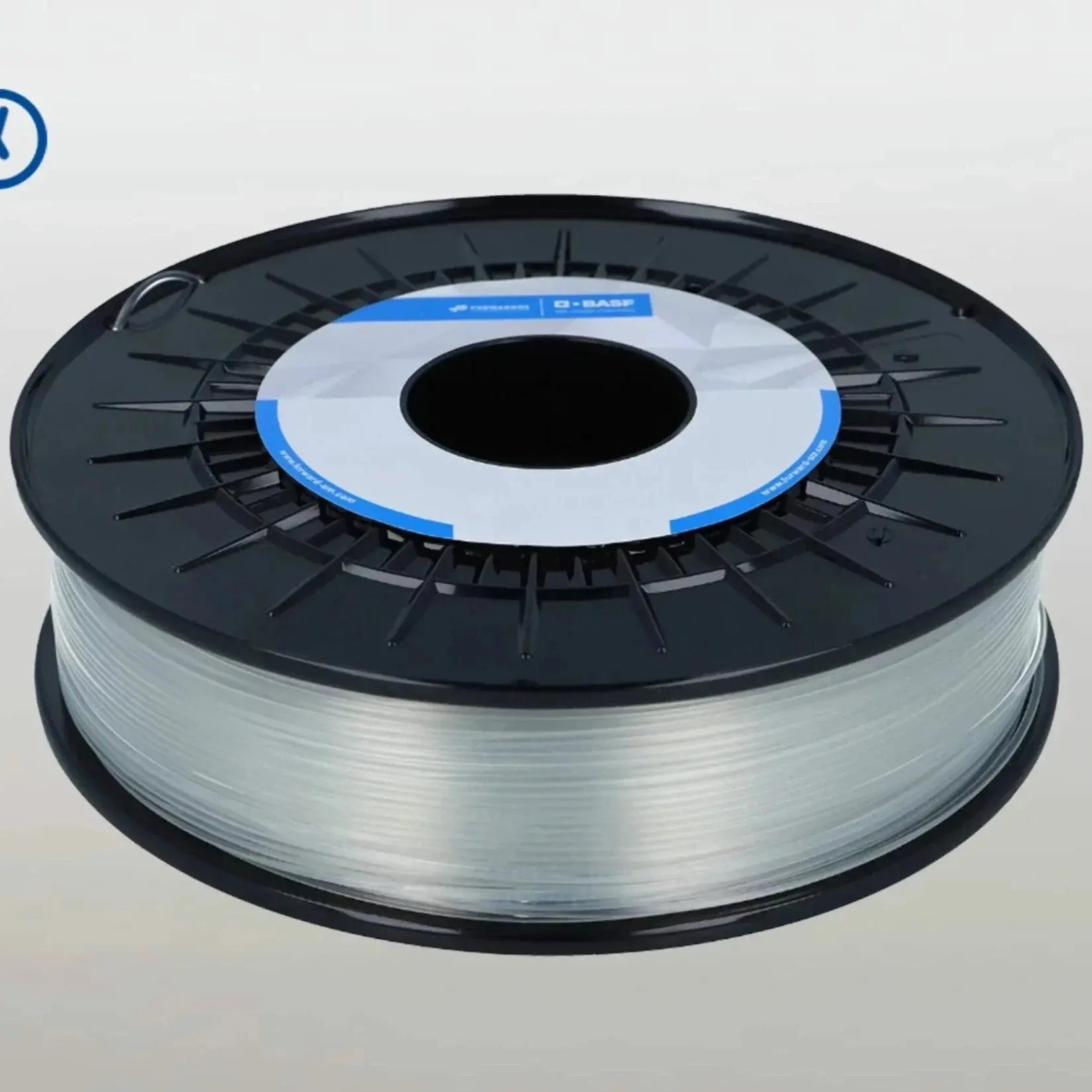

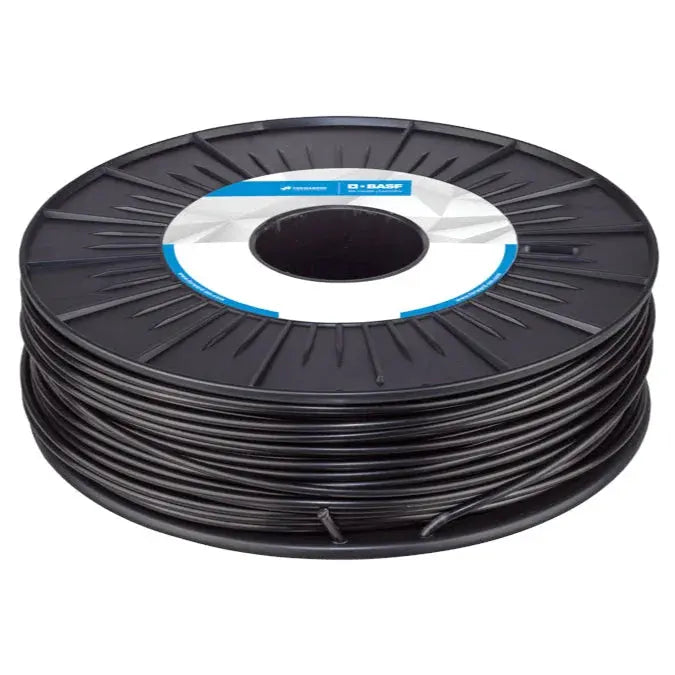

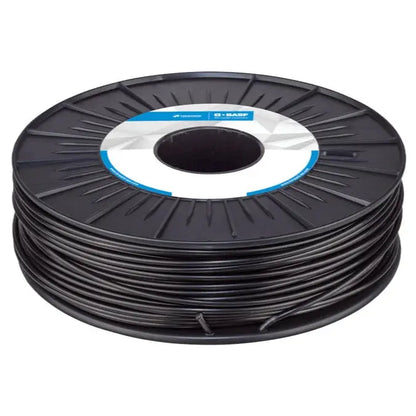

BASF Forward AM Ultrafuse PA (Unfilled Nylon)
BASF Forward AM Ultrafuse PA (Unfilled Nylon)
SKU: PA-4502a075
- Regular price
- Price: $49.99 USD
- Regular price
- List Price: $59.99 USD
- Sale price
- Price: $49.99 USD
- Unit price
- per
You Save:
$10.00 USD (17%)
Couldn't load pickup availability
Great reasons to buy from us:
PRODUCT DESCRIPTION
BASF Forward AM Ultrafuse PA
Ultrafuse® PA is the translation of BASF ́s Ultramid® to the 3D printing space. It is based on a copolyamide 6/66 grade of intermediate viscosity. With Ultrafuse® PA, it is possible to print semi-flexible thin parts; however, it is very rigid at higher thicknesses. It has a lower melting temperature than PA6 and PA66, meaning it can be printed at a lower temperature and also has better impact resistance versus PA6 and PA66, opening up a whole new application field for end-users.
Benefits
- Good fatigue resistance
- High mechanical strength
- Low melting point makes it printable for many FFF printers
- Good wear resistance/ lubricity
- Good impact resistance at low temperatures
Properties
- Tensile Strength (MPa): 16.4 (ZX), 61.4 (XY)
- Flexural Modulus (MPa): 2149 (ZX), 2246 (XZ), 2051 (XY)
- Elongation at Break: 0.8 % (ZX), 9.6 % (XY)
- Impact Strength Izod notched (kJ/m2): 1.7 (ZX), 3.9 (XZ), 5.8 (XY)
- Impact Strength Izod unnotched (kJ/m2): 3.2 (ZX), 45.6 (XZ), 28.0 (XY)
- HDT @ 0.45 MPa: 135 oC
Print Settings
- Nozzle Temperature: 220-250 °C
- Bed Temperature: 90 - 120 °C
- Bed Material: Glass + PVA / Kapton tape / PA adhesive
- Nozzle Diameter: ≥ 0.4 mm
- Print Speed: 30 -60 mm / s
