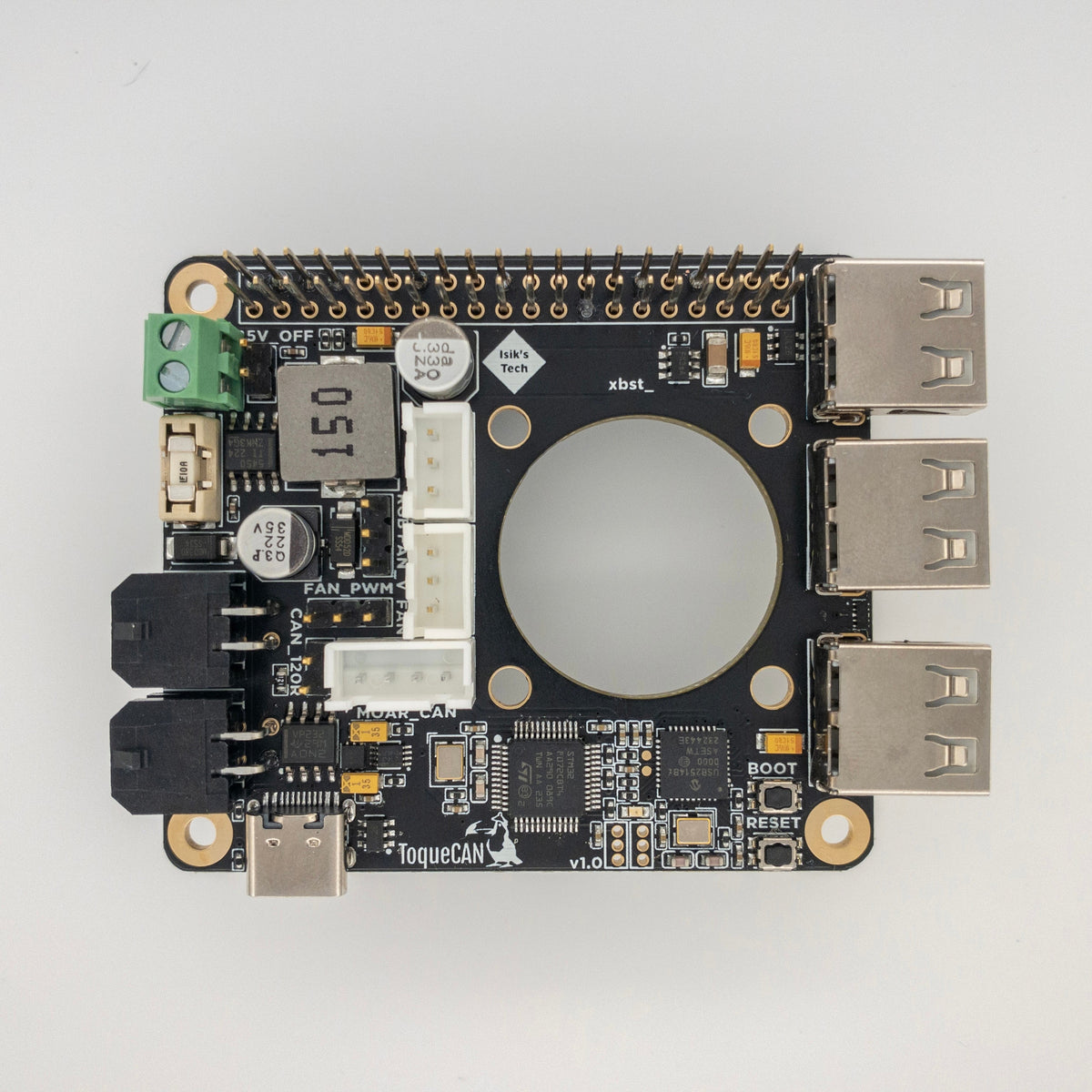

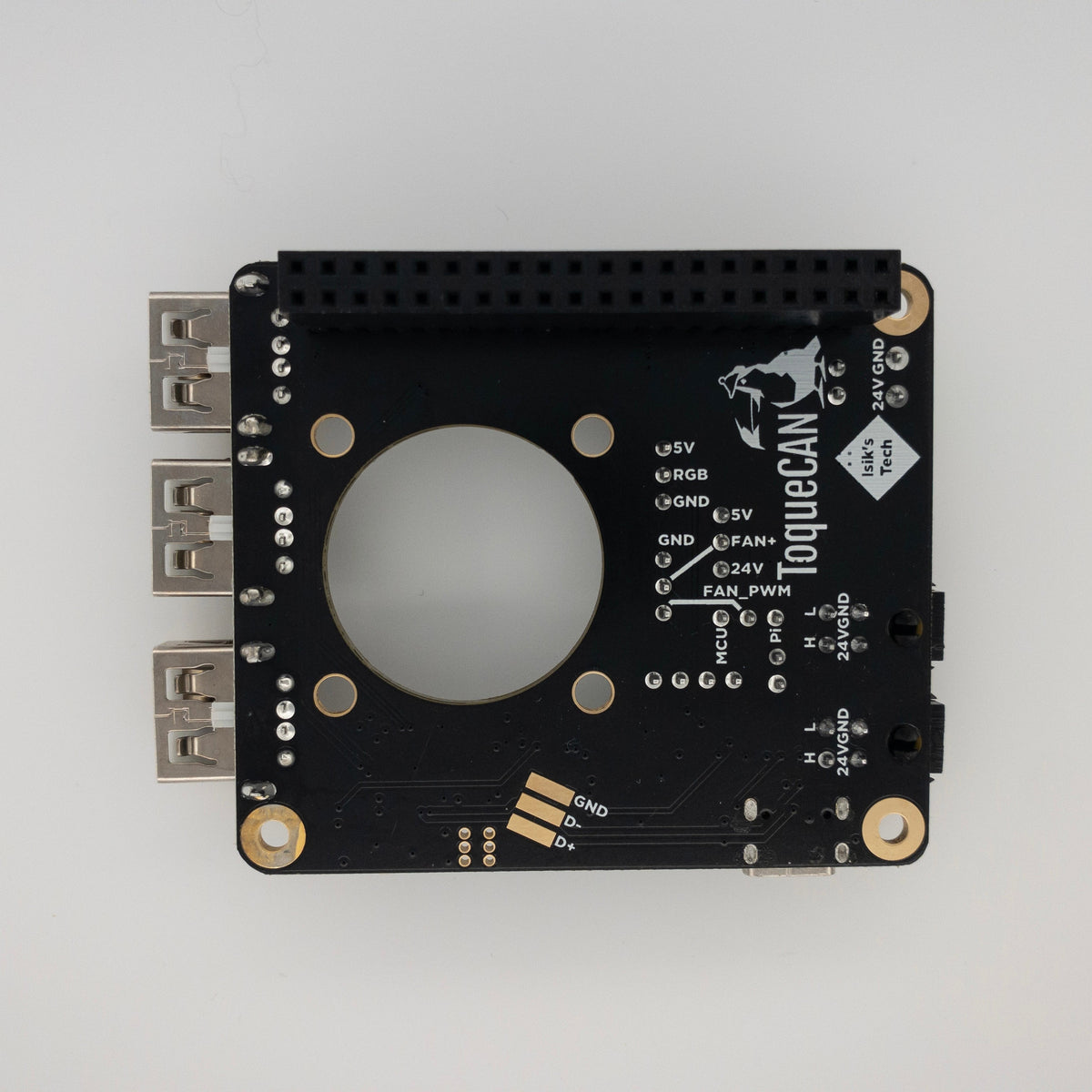

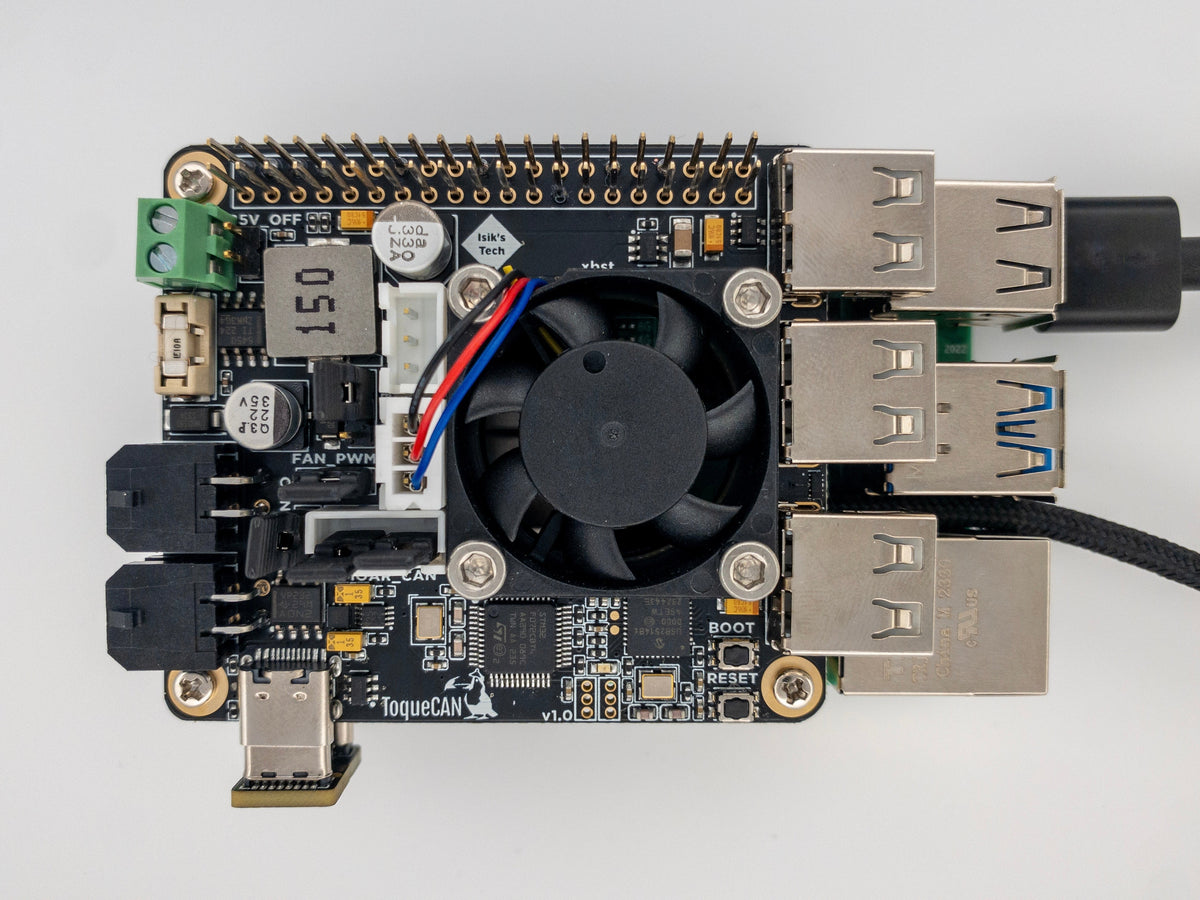

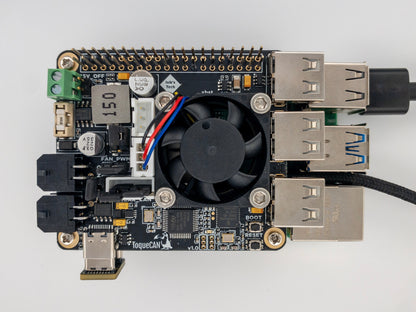

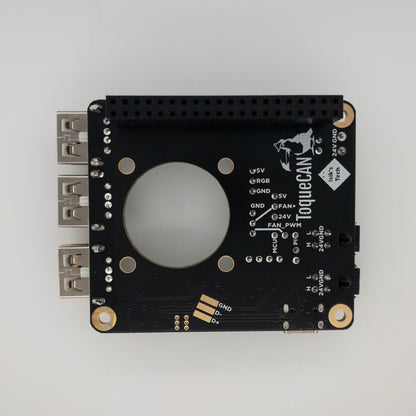

ToqueCAN: Pi Toque With 2x CAN, 3 Port USB Hub and 24V>5V@5A Regulator

ToqueCAN is an open-source Raspberry Pi toque* with:

• A CAN transceiver with 2x CAN connectors
• 3 port USB hub
• 24V to 5V 5A regulator for powering the Pi and USB devices

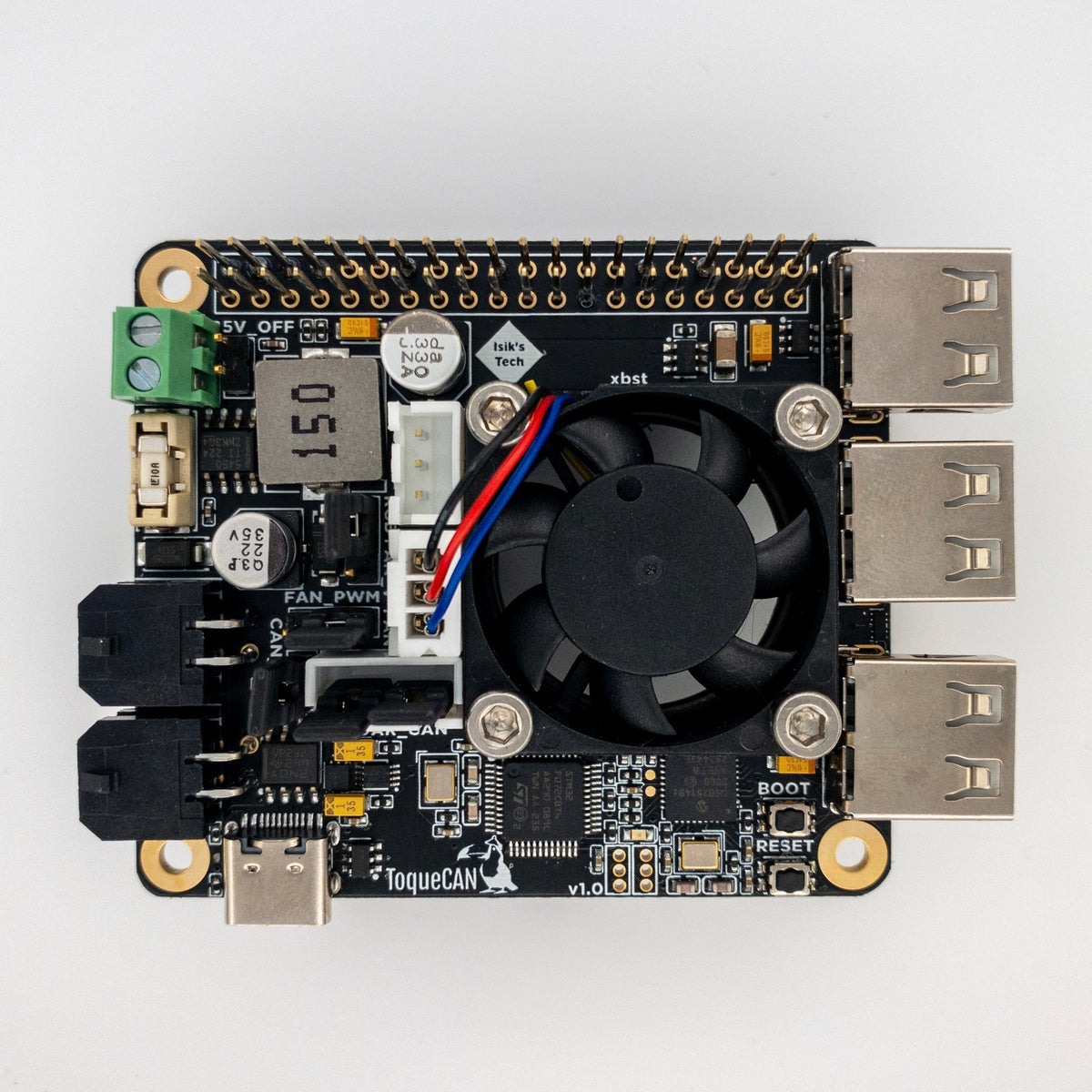

• Pi cooling fan (30mm or 40mm) mount with PWM speed control
• Neopixel control
• GPIO passthrough
• Supports Klipper and Candlelight firmwares

Designed for 3D printers with many CAN devices, 24V power and small electronics chambers.

Included:

• ToqueCAN PCB
• M2.5 standoffs / screws / threaded inserts
• JST-XH and MX3.0 connectors
• Pin header jumpers
• 180° USB adapter for cleaner USB cable routing

Not Included:

• Fan
• 3D printed fan mounts (on GitHub) and fasteners
• USB cable

GitHub Repo

Manual

I am the original creator of this project, every sale here helps me fund the development of future open-source PCB projects. Thanks!

*Almost like a hat, no EEPROM.

v0.1 or v1.0 will be shipped at random. They're functionally identical.
